Component:TorusMesh

Component image

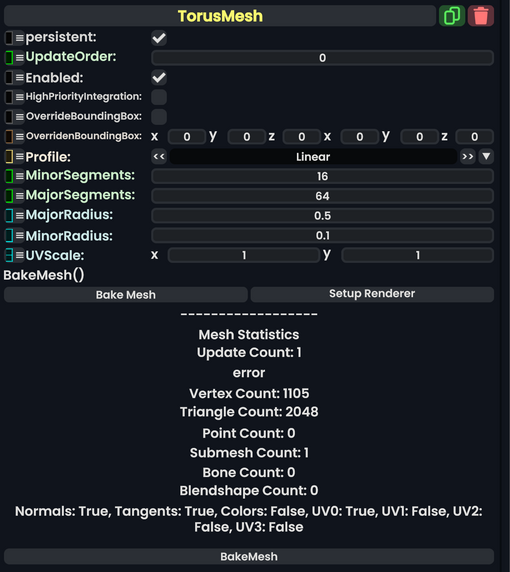

Torus Mesh component as seen in the Scene Inspector

The TorusMesh component generates procedural geometry that is used with Component:MeshRenderer.

This mesh resembles a Donut.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
OverrideBoundingBox	Bool	Force the bounding box calculated from this component to use OverridenBoundingBox instead of calculating when requested.
OverridenBoundingBox	BoundingBox	the bounding box this component should say it has when OverrideBoundingBox is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
Profile	ColorProfile	The profile that the vertex colors for this mesh should be displayed in.
MinorSegments	Int	The amount of detail/cuts along the circle of the torus. Making this 4 will make the torus a square instead of a circle shape.
MajorSegments	Int	The amount of detail/cuts going around and through the center along the outside and inside.
MajorRadius	Float	The size of the torus
MinorRadius	Float	the fatness/thickness of the torus. If this is too big than the hole in the center will seal up.
UVScale	Float2	the scale of the material detail on the surface of the torus.

Sync Delegates

Triggers

Method Name	Method type and Arguments.	Description
BakeMesh()	Action	Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.

Usage

Attach to a slot and insert this component into a Component:MeshRenderer to view its geometry. Don't forget to add a Material
