Summary

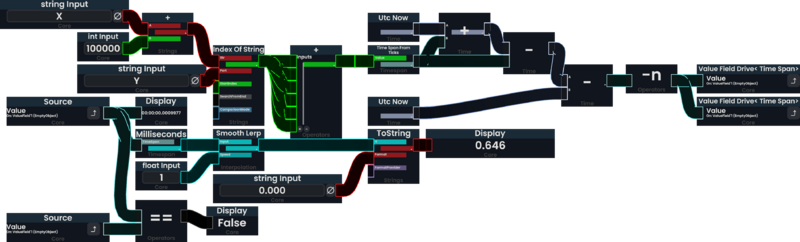

Drive Performance measurement done with version Beta 2024.3.12.1169. Replacing the two Utc Now nodes with a single one changes the output to be 0. Replacing the add node after Index Of String with a simple connection does not change the output. (=measured runtime) Both observations show that during a single evaluation each node is executed at most once.

There are two drives with the same input but different evaluation results. This shows that each drive is evaluated individually.

Note that all observations are dependent on the current implementation of ProtoFlux evaluation and may change with future optimizations.

Licensed as CC0
