Component:BallisticPathMesh

Component image

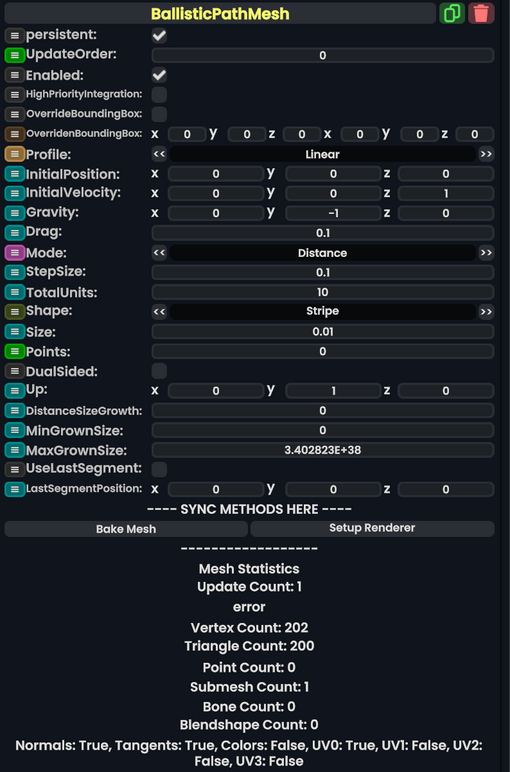

Ballistic Path Mesh component as seen in the Scene Inspector

The ballistics path mesh is a component that generates a stripe or tube mesh that traces the future path of a virtual thrown object.

Tube mode currently does not work due to a small oversight. See issue 2901

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
OverrideBoundingBox	Bool	Force the bounding box calculated from this component to use OverridenBoundingBox instead of calculating when requested.
OverridenBoundingBox	BoundingBox	the bounding box this component should say it has when OverrideBoundingBox is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
Profile	ColorProfile	The profile that the vertex colors for this mesh should be displayed in.
InitialPosition	Float3	The initial position of the ballistics path.
InitialVelocity	Float3	The initial velocity of the ballistics path.
Gravity	Float3	The gravity affecting the ballistics path (m/s^2)
Drag	Float	the resistance through the air of the generated ballistics path
Mode	StepMode	What units StepSize is in.
StepSize	Float	How many units maximum every bend/segment is in length (the last segment may be shorter).
TotalUnits	Float	How many segments the path mesh will have give or take 1 or 2.
Shape	PathShape	What shape the arc should be rendered as.
Size	Float	How big to scale this ballisitics path
Points	Int	how many sides the tube mesh uses. Only accepts values greater than or equal to 3.
DualSided	Bool	whether the generated mesh should be dual sided.
Up	Float3	The up direction against gravity for the generated mesh (local space)
DistanceSizeGrowth	Float	How much to make the width/radius of the path mesh grow as it progresses along the arc.
MinGrownSize	Float	How skinny at minimum the Ballistic Path Mesh will get from applying DistanceSizeGrowth.
MaxGrownSize	Float	How wide at maximum the Ballistic Path Mesh will get from applying DistanceSizeGrowth.
UseLastSegment	Bool	Whether to add one final segment that goes to <codr>LastSegmentPosition
LastSegmentPosition	Float3	The local position to place the end of the last segment at if UseLastSegment is enabled.

Sync Delegates

Triggers

Method Name	Method type and Arguments.	Description
BakeMesh()	Action	Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.

StepMode

Values

Name	Value	Description
Time	0	StepSize refers to units of time
Distance	1	StepSize refers to distance in meters.

PathShape

Values

Name	Value	Description
Stripe	0	Make the path segment shape a sripe.
Tube	1	Make the path segment shape a tube.

Examples

This is commonly used in the teleport to locomotion for the indication visual for teleporting. The teleport locomotion uses Stripe for the path shape.
