Component:BevelBoxMesh

This page contains changes which are not marked for translation.

Component image

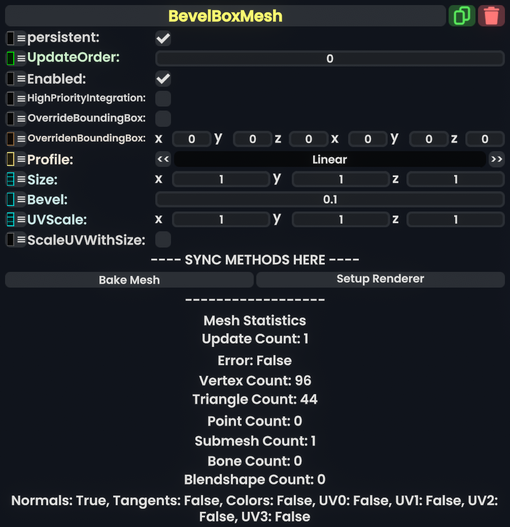

Bevel Box Mesh component as seen in the Scene Inspector

The BevelBoxMesh component can be placed in a MeshRenderer to create a box with beveled edges.

Fields

Fields
Name	Type	Description
`persistent`	Bool	Determines whether or not this item will be saved to the server.
`UpdateOrder`	Int	Controls the order in which this component is updated.
`Enabled`	Bool	Controls whether or not this component is enabled.
`HighPriorityIntegration`	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
`OverrideBoundingBox`	Bool	Force the bounding box calculated from this component to use `OverridenBoundingBox` instead of calculating when requested.
`OverridenBoundingBox`	BoundingBox	the bounding box this component should say it has when `OverrideBoundingBox` is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
`Profile`	ColorProfile	The profile that the vertex colors for this mesh should be displayed in.
`Size`	Float3	The 3-Dimentional scale of the mesh.
`Bevel`	Float	Size of the rounded edges.
`UVScale`	Float3	The inverse of the size the material should appear on the surface as.
`ScaleUVWithSize`	Bool	Change uv scale visually with the value of `Size`

Triggers
Method Name	Method type and Arguments.	Description
`BakeMesh()`	Action	Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.

Attach to a slot, and assign to a Mesh Renderer to see what it looks like. Don't forget to use a material.

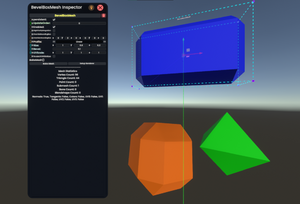

The BevelBoxMesh component can be used to create many interesting shapes by mixing different sizes and bevels.
