Component:BevelPlaneMesh

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

Component image

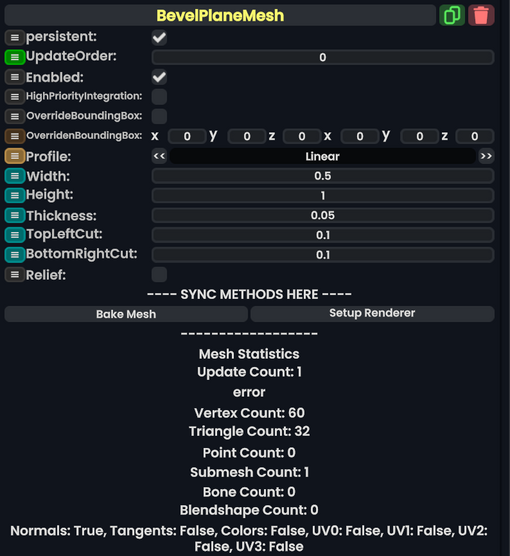

Bevel Plane Mesh component as seen in the Scene Inspector

Used in old Legacy content like old inspectors and panels.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
OverrideBoundingBox	Bool	Force the bounding box calculated from this component to use OverridenBoundingBox instead of calculating when requested.
OverridenBoundingBox	BoundingBox	the bounding box this component should say it has when OverrideBoundingBox is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
Profile	ColorProfile	The profile that the vertex colors for this mesh should be displayed in.
Width	Float	the width of the plane
Height	Float	the height of the plane
Thickness	Float	How 3D the plane should be, making it more like a box.
TopLeftCut	Float	How much to bevel the top left corner.
BottomRightCut	Float	How much to bevel the bottom right corner.
Relief	Bool	indent the center inwards or not.

Sync Delegates

Triggers

Method Name	Method type and Arguments.	Description
BakeMesh()	Action	Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.

Usage

Attach to a slot, and use the Settup Renderer button to view the mesh.

Examples

Used in old legacy UI from migrated content.
