Component:BevelRingMesh

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

Component image

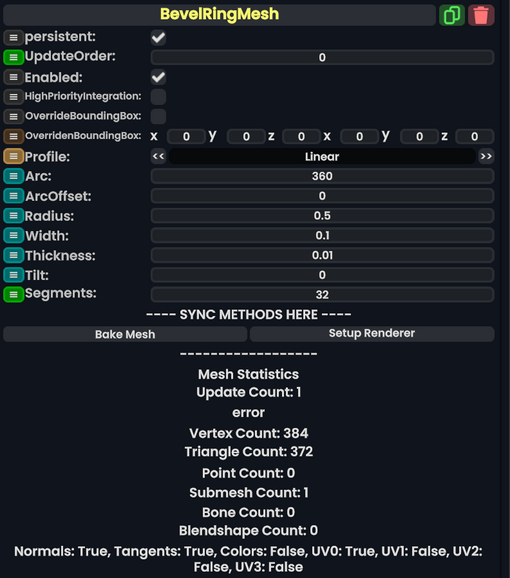

Bevel Ring Mesh component as seen in the Scene Inspector

Bevel Ring Mesh is a component that can create an circle or part of a circle in the form of a 3D strip that can have beveled edges. The geometry made by this component can be viewed by inserting the component into a MeshRenderer.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
OverrideBoundingBox	Bool	Force the bounding box calculated from this component to use OverridenBoundingBox instead of calculating when requested.
OverridenBoundingBox	BoundingBox	the bounding box this component should say it has when OverrideBoundingBox is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
Profile	ColorProfile	The profile that the vertex colors for this mesh should be displayed in.
Arc	Float	How long the strip continues from the starting point defined by ArcOffset
ArcOffset	Float	The degree that the start point of the strip is at.
Radius	Float	The distance the middle of the strip is from the curvature center.
Width	Float	How wide the curved strip is
Thickness	Float	The thickness of the curved strip.
Tilt	Float	How much to bend the strip from a flat orientation to inwards/outwards slop from/towards the center. Is in degrees.
Segments	Int	how many bends are generated in the curve. Bigger values result in smoother curve in exchange for performance.

Sync Delegates

Triggers

Method Name	Method type and Arguments.	Description
BakeMesh()	Action	Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.

Examples

Used in old content that used another platform's logo. Which was made of 8 pieces like Resonite's logo. It also is used to make holo Frisbees.
