Component:BezierTubeMesh

This page contains changes which are not marked for translation.

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

Component image

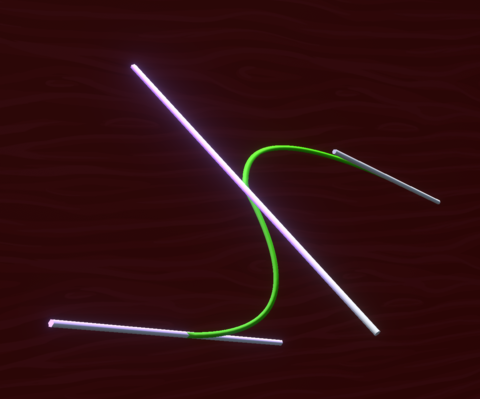

Bezier tube mesh is a component that allows for making a continuous tube of geometry that is a Bezier curve shape defined by points.

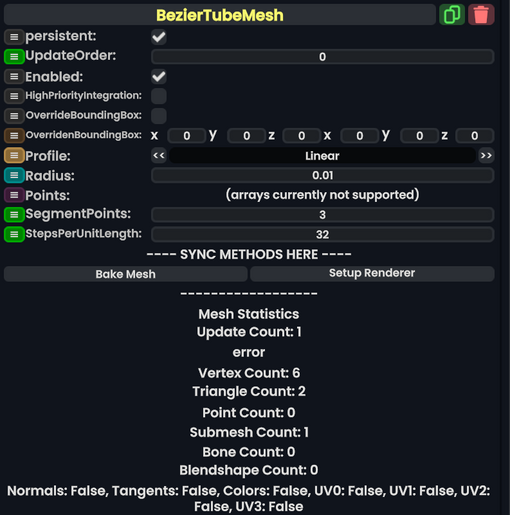

Fields

Fields
Name	Type	Description
`persistent`	Bool	Determines whether or not this item will be saved to the server.
`UpdateOrder`	Int	Controls the order in which this component is updated.
`Enabled`	Bool	Controls whether or not this component is enabled.
`HighPriorityIntegration`	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
`OverrideBoundingBox`	Bool	Force the bounding box calculated from this component to use `OverridenBoundingBox` instead of calculating when requested.
`OverridenBoundingBox`	BoundingBox	the bounding box this component should say it has when `OverrideBoundingBox` is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
`Profile`	ColorProfile	The profile that the vertex colors for this mesh should be displayed in.
`Radius`	Float	The radius of the tube (from center to outside).
`Points`	direct SyncCurve`1<Float3>	Curve tangent point/handle array used for the generation of this mesh. Editing this via Mods produces undesirable results where the curve has really sharp bends.
`SegmentPoints`	Int	How many sides the tube mesh has around it's mid section.
`StepsPerUnitLength`	Int	How many bends from point to point the tube should have.

Triggers
Method Name	Method type and Arguments.	Description
`BakeMesh()`	Action	Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.
