Component:Bool2ToBool3SwizzleDriver

Component image

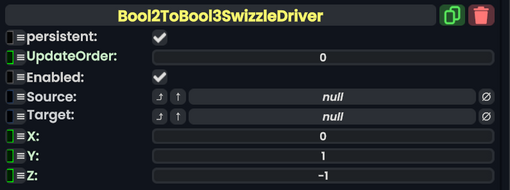

Bool 2To Bool 3Swizzle Driver component as seen in the Scene Inspector

Swizzle drivers are a type of component that allow for taking the components of a packed value (packed 3 or 4s) and rearrange them into the output. The different packed channels are numbered 0->2 for pack 3's and 0->3 for pack 4's. When driving the output, you have a choice of taking any channel within the pack 3 or 4 by number and driving an output channel with said source number. This can be used to flip axes, zero them out by using -1 as a source channel, or rearrange them. For example, making a 3d point move only on the y axis position of another point (-1, 1, -1).

Usage

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled.
Source	direct RelayRef`1<IField`1<Bool2>>	The field which to take values from it's components and drive Target's components with them.
Target	field drive of Bool3	The field which to drive the components of.
X	Int	Takes the n'th component from Source and drives the X component of Target with it.
Y	Int	Takes the n'th component from Source and drives the Y component of Target with it.
Z	Int	Takes the n'th component from Source and drives the Z component of Target with it.
