Component image

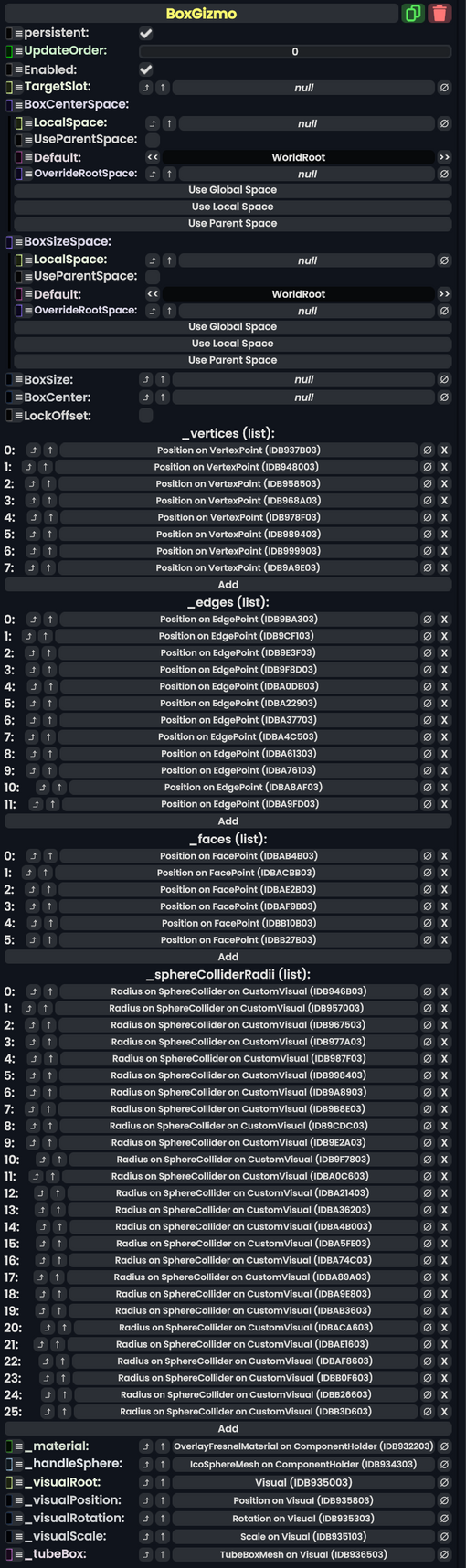

Box Gizmo component as seen in the Scene Inspector
The BoxGizmo component is used to make the handles and visual for editing a box mesh or collider, and also handles the interaction with the handles.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
TargetSlot
|
Slot | The slot of the box to edit. |
BoxCenterSpace
|
direct RootSpace | The coordinate space to transform by when making the result of BoxCenter
|
BoxSizeSpace
|
direct RootSpace | The coordinate space to transform by when making the result of BoxSize
|
BoxSize
|
direct RelayRef`1<IField`1<Float3>> | The field to edit for the box size. |
BoxCenter
|
direct RelayRef`1<IField`1<Float3>> | The field to drive for the box center. |
LockOffset
|
Bool | Whether to lock the offset of the box so it's center stays the same. |
_vertices
|
list of FieldDrive`1<Float3> | A list of fields to drive for the vertex positions of the cube gizmo visual. |
_edges
|
list of FieldDrive`1<Float3> | A list of fields to drive for the edge positions of the cube gizmo visual. |
_faces
|
list of FieldDrive`1<Float3> | A list of fields to drive for the face positions of the cube gizmo visual. |
_sphereColliderRadii
|
list of FieldDrive`1<Float> | A list of fields to drive for the sphere rotations of the cube gizmo visual. |
_material
|
OverlayFresnelMaterial | The material being used for the gizmo visual. |
_handleSphere
|
IcoSphereMesh | The mesh being used for the handles of the gizmo like corners or faces. |
_visualRoot
|
Slot | The slot of the visual root. |
_visualPosition
|
field drive of Float3 | The field to drive for the visual position. |
_visualRotation
|
field drive of FloatQ | The field to drive for the visual rotation. |
_visualScale
|
field drive of Float3 | The field to drive for the visual scale. |
_tubeBox
|
reference drive of TubeBoxMesh | The tube box mesh being used for the gizmo visual. |
Usage
This article or section is a Stub. You can help the Resonite Wiki by expanding it.
Examples
Used to edit box colliders or box meshes. Created by the dev tool when switching gizmo modes when having a box selected.
