Component:CharacterForceField

Component image

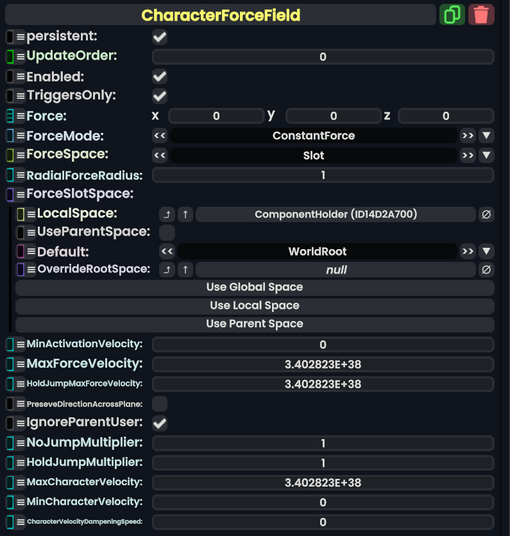

Character Force Field component as seen in the Scene Inspector

This article or section is a stub. You can help the Resonite wiki by expanding it.

This component creates a force field that allows the setting of or applying force to the velocity of Character Controllers.

Usage

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
TriggersOnly	Bool	Whether to only allow trigger colliders attached to character controller objects to activate the force field.
Force	Float3	force direction and magnitude to apply a character controller within range with.
ForceMode	CharacterForceField.Mode	Whether to use impulse, apply, or set velocity using Force
ForceSpace	CharacterForceField.Space	Whether to do the force direction in local or global space (so should Force be scaled and rotated by the slot this is on or not?)
RadialForceRadius	Float	The range of effect this force field has.
ForceSlotSpace	direct RootSpace	Override the transform space for Force with this if set.
MinActivationVelocity	Float	The minimum velocity a character controller has to be going to trigger this force field.
MaxForceVelocity	Float	How fast the character controller's velocity can be at max after being affected by this component when the user isn't holding Jump
HoldJumpMaxForceVelocity	Float	How fast the character controller's velocity can be at max after being affected by this component when the user is holding Jump
PreseveDirectionAcrossPlane	Bool	Calculates a plane that is perpendicular to the vector Force (like a stick stuck into a piece of paper) and maintains the initial direction of the velocity of the character controller in either the forward or backwards facing direction of this plane.
IgnoreParentUser	Bool	Whether to ignore the active user when finding character controllers within range of RadialForceRadius. This does not ignore character controllers that are simulated by the user.
NoJumpMultiplier	Float	How much to multiply the effect of Force when the user isn't holding Jump
HoldJumpMultiplier	Float	How much to multiply the effect of Force when the user is holding Jump
MaxCharacterVelocity	Float	The maximum velocity this component can set a character controller's speed to after setting a force on it.
MinCharacterVelocity	Float	The minimum velocity this component can set a character controller's speed to after setting a force on it.
CharacterVelocityDampeningSpeed	Float	How fast to slow the user down. this can be used to give the effect of jumping into molasses.

Behavior

Needs a collider on the same hierarchy to allow triggering this component.

See Also

Character Controllers
