Component:ConeEmitter

Component image

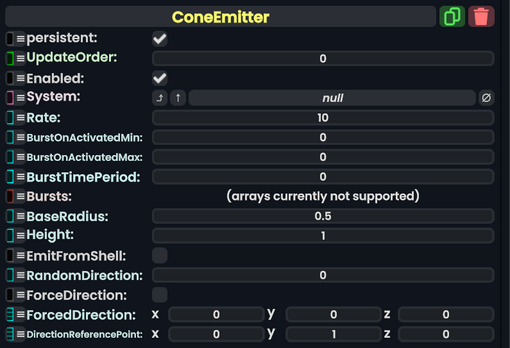

Cone Emitter component as seen in the Scene Inspector

The ConeEmitter component is used to create particles via a particle system (see Photon Dust). This Emitter does this in a cone shape.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
System	ParticleSystem	The particle system to get data from like style and particle count limits.
Rate	Float	how fast to emit particles into the system.
BurstOnActivatedMin	Float	The minimum value of the range of particle count to be emitted when activated as a burst.
BurstOnActivatedMax	Float	The maximum value of the range of particle count to be emitted when activated as a burst.
BurstOnStart	Bool	Whether or not particle bursts should be done on spawn.
BaseRadius	Float	The radius of the cone to emit from.
Height	Float	The height of the cone to emit from.
EmitFromShell	Bool	Enable emitting particles on the outside of the shape instead of from any point within the volume.
DirectionMode	ConeEmitterDirection	How particles are emitted from the cone.
RandomDirectionWeight	Float	How much to randomize the velocity of new particles (this is a magnitude)
Direction	Float3	Which direction in local space to shoot particles emitted by this emitter.
DirectionTransformMode	DirectionTransformMode	How to determine the transform of the particles made by this emitter at start.
RandomDirectionWeight	Float	How much to randomize the velocity of new particles (this is a magnitude)
DirectionPostTransform	Float3x3	The direction the particles should face as an extra matrix transform after the final particle starting direction has been calculated.

Examples

This article or section is a Stub. You can help the Resonite Wiki by expanding it.
