Component:FeedActionInterface
The FeedActionInterface component is used as a template type item in data feed mappers in the Data Feeds system.
More actions
Component image

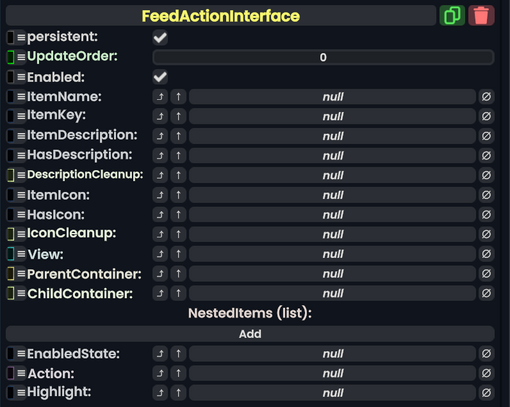

Feed Action Interface component as seen in the Scene Inspector
The FeedActionInterface component is used as a template type item in data feed mappers in the Data Feeds system.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
HasData
|
Bool | The field to set when this interface is templated by a data feed for whether it has data or not. |
ItemName
|
IField`1<String> | The field to fill with the name of the interface item when it is templated via a data feed. For settings toggles, this would be the toggle name. |
ItemKey
|
IField`1<String> | The field to fill with the interfaces key if it is a dictionary type item. |
ItemDescription
|
IField`1<String> | The field to fill with the template description when template via a data feed. |
HasDescription
|
IField`1<Bool> | Whether the item when templated via a data feed has a description. |
DescriptionCleanup
|
Slot | If this interface doesn't have a description during templating via a data feed, then delete the slot specified. |
ItemIcon
|
IField`1<Uri> | The resource URL to fill with an image link/URI if the data feed item has an icon. |
HasIcon
|
IField`1<Bool> | Whether this template has an icon. This is set during duplication as a template via a data feed. |
IconCleanup
|
Slot | The slot to delete when this interface item doesn't have an icon when being duplicated as a template item by a data feed. |
View
|
SyncRef`1<IDataFeedView> | The data feed view that this template was instantiated by. Like a SingleFeedView. |
ParentContainer
|
FeedItemInterface | This template's parent container. If that template also has a parent and a child, then it recursively goes up the containers till it finds the root interface with a parent and a child interface, then instantiates that interfaces child interface and it's Nested items instead of just this interface. |
ChildContainer
|
Slot | This template's child template which it instanciates if it's part of a parent child structure of interfaces. |
NestedItems
|
list of FeedItemInterface.NestedItem | A list of extra data feed items to instantiate the same as this one with the same arguments, except each one can be Nested under this item. |
EnabledState
|
IField`1<Bool> | The enabled state of this feed interface item UI element. |
Action
|
SyncDelegate`1<Action> | The field to fill with the Action Sync delegate when this is set up as a template via a data feed. |
Highlight
|
IField`1<Bool> | The bool to toggle when this item is highlighted. |
Usage
This article or section is a stub. You can help the Resonite wiki by expanding it.
