Component:Float3ToColorSwizzleDriver

Component image

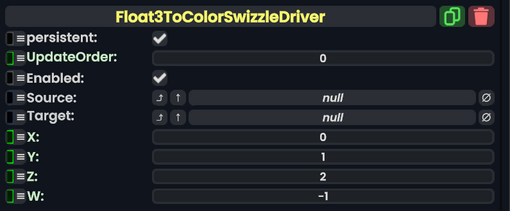

Float 3To Color Swizzle Driver component as seen in the Scene Inspector

The Float3ToColorSwizzleDriver component drives a Color value based on the channels of the input Float3. Each output channel (counting from 0) is assigned to an input channel (or -1 for zero), allowing for arbitrary rearrangement (i.e. swizzling). It's equivalent to unpacking the input value and packing it again with ProtoFlux.

Usage

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Source	direct RelayRef`1<IField`1<Float3>>	The field which to take values from it's components and drive Target's components with them.
Target	field drive of Color	The field which to drive the components of.
X	Int	Takes the n'th component from Source and drives the X component of Target with it.
Y	Int	Takes the n'th component from Source and drives the Y component of Target with it.
Z	Int	Takes the n'th component from Source and drives the Z component of Target with it.
W	Int	Takes the n'th component from Source and drives the W component of Target with it.
