Component:GradientSkyMaterial

Component image

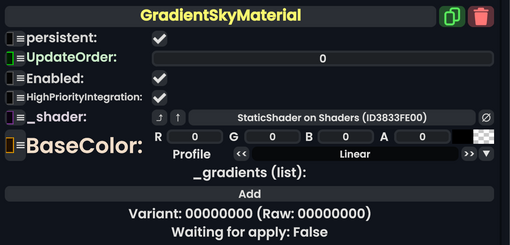

Gradient Sky Material component as seen in the Scene Inspector

The GradientSkyMaterial component is used in Component:Skybox to make a gradient type sky for use in worlds.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
_shader	Shader	The Shader to use. Internal.
BaseColor	ColorX	The base color of the sky.
_gradients	list of Gradient	Applies a list of Gradients to the sky.

Usage

Attach to a slot and insert into a Component:Skybox component and use the SetCurrentSky() Sync Method to use this component. Don't forget to add some _gradients to the list.

Gradient

Gradient is a nested type used in the _gradients list.

Fields

Name	Type	Description
Direction	Float3	The direction this gradient should point in.
FromColor	ColorX	The color to start at for this gradient.
ToColor	ColorX	The color to end at for this gradient.
Spread	Float	How much to extend the gradient from it's From and To limits beyond the transitioning section.
From	Float	Where this gradient should start from in a range from 0<->1
To	Float	Where this gradient should end at in a range from 0<->1
Exp	Float	The sharpness of the transition of the gradient

Examples

• Basic World Creation Pt. 1 Simple World by ProbablePrime

Related Components

• Component:Skybox
