Component:HollowConeMesh

Component image

Hollow Cone Mesh component as seen in the Scene Inspector

The HollowConeMesh component is used to generate geometry for use with a Component:MeshRenderer. This component generates a cone with a hollow center with internal geometry and a thickness. Similarly to the ConeMesh, the height of this procedural mesh is determined from the center of the object.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
OverrideBoundingBox	Bool	Force the bounding box calculated from this component to use OverridenBoundingBox instead of calculating when requested.
OverridenBoundingBox	BoundingBox	the bounding box this component should say it has when OverrideBoundingBox is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
Profile	ColorProfile	the profile of the colors of vertices for this mesh.
Height	Float	how tall the hollow cone should be starting from the center
OuterRadiusBase	Float	the radius of the bottom ring that makes up the outer tube
InnerRadiusBase	Float	the radius if the bottom ring that makes up the inner tube
OuterRadiusTop	Float	the radius of the top ring that makes up the outer tube
InnerRadiusTop	Float	the radius of the top ring that makes up the inner tube
Segments	Int	how many faces make up each cylinder for the outside and inside.
UVScale	Float2	how much to multiply the scale of the UVs for the procedural mesh.

Sync Delegates

Triggers

Method Name	Method type and Arguments.	Is the method hidden?	Description
BakeMesh:Action	Action	X	Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.

Usage

Attach to a slot and insert into a Component:MeshRenderer to view the geometry. Don't forget to use a Material.

Examples

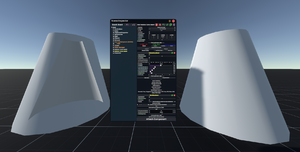

2 HollowConeMeshes, one using an alpha material to demonstrate its hollow nature

Something to keep in mind: By setting it's top and bottom radius to the same values, this can be used to create the equivalent of a 'HollowCylinderMesh'.

See Also

• Component:ConeMesh
