Component:MaterialAssetMetadata

Component image

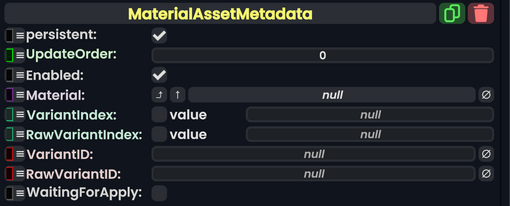

Material Asset Metadata component as seen in the Scene Inspector

The MaterialAssetMetadata component gives variant info about materials in the form of usable values. These values are usually listed at the bottom of a material inspector but are unusable in that state.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Material	Material	The material to get Metadata on.
VariantIndex	raw output of Nullable`1<UInt32>	The material variant defined by GPU definitions on the shader. For example, a reflection material has a second variant for having a normal map vs without.
RawVariantIndex	raw output of Nullable`1<UInt32>	The raw version of VariantIndex.
VariantID	raw output of String	The ID of the material variant (can be seen at the bottom of a material in the Inspector too.
RawVariantID	raw output of String	The raw version of VariantID.
WaitingForApply	raw output of Bool	Whether this material is waiting to be applied in the render scene due to missing variants or otherwise.

Usage

Can be used to get variant info and other info shown at the bottom of a material in the Inspector as actual usable values.

Examples

This article or section is a Stub. You can help the Resonite Wiki by expanding it.
