Component:MazeGenerator

From Resonite Wiki
Component image

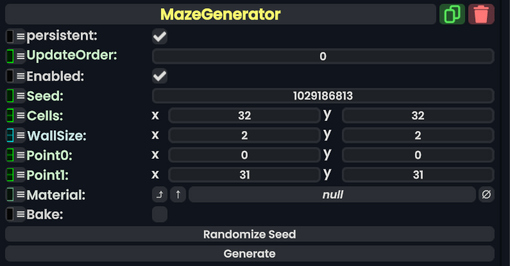

Maze Generator component as seen in the Scene Inspector


The MazeGenerator component generates a maze (with a ton of slots) with given parameters.

Fields
Name Type Description
persistent Bool Determines whether or not this item will be saved to the server.
UpdateOrder Int Controls the order in which this component is updated.
Enabled Bool Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Seed Int The random seed for generating this maze.
Cells Int2 The maze square sections for this generated maze.
WallSize Float2 X: how long the walls are, Y: how tall the walls are.
Point0 Int2 The start position for this maze.
Point1 Int2 The end position for this maze.
Material MaterialProvider The material for the walls of the maze.
Bake Bool Bakes the generated maze.

Sync Delegates

Triggers
Method Name Method type and Arguments. Is the method hidden? Description
Generate:Action Action X Generate the maze.
OnRandomizeSeed:ButtonEventHandler ButtonEventHandler
OnGenerate:ButtonEventHandler ButtonEventHandler

Usage

Great for prototyping mazes, and can be baked.

Examples

This article or section is a Stub. You can help the Resonite Wiki by expanding it.


See Also
