Component image

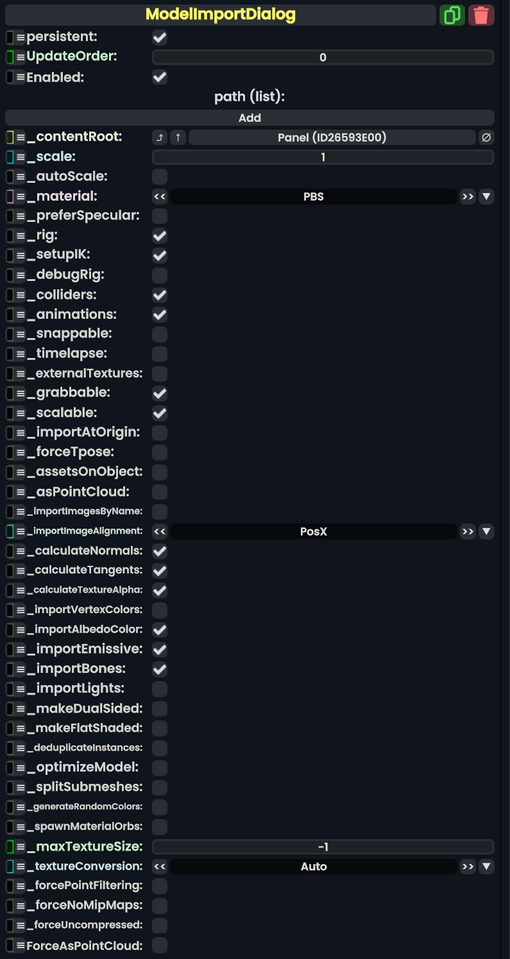

Model Import Dialog component as seen in the Scene Inspector
The ModelImportDialog component is better explained at Importing.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
path
|
list of Action`1<UIBuilder> | A list of sync delegates used to generate the UI when at particular paths in the importer. |
_contentRoot
|
Slot | The slot to put ui elements for import options in. |
_scale
|
Float | The scale of the model being imported. |
_autoScale
|
Bool | Whether to use auto scale to humanoid height |
_material
|
ModelImportDialog.MaterialType | What kind of material to import the materials for the model as. |
_preferSpecular
|
Bool | Whether the importer should prefer to use specular materials. |
_rig
|
Bool | Whether the model has a rig or not. |
_setupIK
|
Bool | Whether IK should be set up. |
_debugRig
|
Bool | Whether to debug the rig bones after import. |
_colliders
|
Bool | Whether to add auto generated colliders. |
_animations
|
Bool | Whether to import animations. |
_snappable
|
Bool | Whether to import the model as separate snappable pieces |
_timelapse
|
Bool | Whether to import animations as timelapses |
_externalTextures
|
Bool | Whether to look for external textures when importing |
_grabbable
|
Bool | Whether to import the model as grabbable |
_scalable
|
Bool | Whether to import the model as scalable. |
_importAtOrigin
|
Bool | Whether to import the model centered at the world origin |
_forceTpose
|
Bool | Whether to enforce a t-pose on an IK model when importing |
_assetsOnObject
|
Bool | Whether to place the asset components on the avatar itself under a list of slots, or place them under the world assets and have them be optimized automatically. |
_asPointCloud
|
Bool | Whether to import as a point cloud. |
_importImagesByName
|
Bool | Whether to import images by name. |
_importImageAlignment
|
ModelImportDialog.AlignmentAxis | Which axis import the image objects along. |
_calculateNormals
|
Bool | Whether to calculate new normals on import. |
_calculateTangents
|
Bool | Whether to calculate new tangents on import. |
_calculateTextureAlpha
|
Bool | Whether to calculate new texture alpha/transparency on import. |
_importVertexColors
|
Bool | Whether to import vertex color data for the model. |
_importAlbedoColor
|
Bool | Whether to import material solid albedo color data on import |
_importEmissive
|
Bool | Whether to import material solid emissive color data on import. |
_importBones
|
Bool | Whether to import model rig bones on import. |
_importLights
|
Bool | Whether to import model light objects on import. |
_makeDualSided
|
Bool | Whether to import the model as dual sided geometry. |
_makeFlatShaded
|
Bool | Whether to import the model geometry as flat shaded rather than smooth shaded. |
_deduplicateInstances
|
Bool | Whether to deduplicate duplicate data on the mesh like cubes or models in the same place and size. |
_optimizeModel
|
Bool | Whether to do some small optimizations to the model or not. |
_splitSubmeshes
|
Bool | Whether to split the model by material or not. |
_generateRandomColors
|
Bool | Whether to generate random colors per material for identification or not. |
_spawnMaterialOrbs
|
Bool | Whether to spawn material orb objects per material for easy access. |
_maxTextureSize
|
Int | The max texture size to restrict textures to on the model during import. |
_textureConversion
|
TextureConversion | What kind of texture format to convert imported textures to. |
_forcePointFiltering
|
Bool | Whether to force point filtering on textures (Pixel art) |
_forceNoMipMaps
|
Bool | Whether to disable texture resolution reduction by distance optimization. |
_forceUncompressed
|
Bool | Whether to disable compression on assets and textures or not. |
ForceAsPointCloud
|
Bool | Whether to enforce importing the model as a point cloud or not. |
PotentialGaussianSplat
|
Bool | Whether to interpret the data as a gaussian splat. |
_flipY
|
Bool | Whether to flip the gaussian splat on the Y axis. |
_encodeSPZ
|
Bool | Whether the gaussian splat is an SPZ format. |
Sync Delegates
| Method Name | Method type and Arguments. | Is the method hidden? | Description |
|---|---|---|---|
OpenRoot:Action`1<UIBuilder>
|
Action`1<UIBuilder> | ✓ | Called when the root menu needs generating. |
Preset_3DModel:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the 3d model preset button is touched. |
Preset_VertexColorModel:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the vertex color model preset button is touched. |
Menu3DModel:Action`1<UIBuilder>
|
Action`1<UIBuilder> | ✓ | called when the 3d model menu needs generating. |
MenuFinishImport:Action`1<UIBuilder>
|
Action`1<UIBuilder> | ✓ | Is called when the finish import menu needs generating. |
OpenAdvancedSettings:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the advanced settings button is touched. |
Preset_Regular3DModel:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the regular model preset button is touched. |
Preset_Separable3DModel:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the separate snappable pieces preset button is touched. |
Preset_3DScan:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the 3d scan preset button is touched. |
Preset_CADModel:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the CAD preset button is touched. |
Preset_PointCloud:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the point cloud preset button is touched. |
Preset_GaussianSplat:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the gaussian splat preset button is touched. |
MenuGaussianSplatVertical:Action`1<UIBuilder>
|
Action`1<UIBuilder> | ✓ | Called when the vertical gaussian splat menu needs generating |
MenuGaussianSplatEncoding:Action`1<UIBuilder>
|
Action`1<UIBuilder> | ✓ | called when the gaussian splat encoding menu needs generating. |
MenuScale:Action`1<UIBuilder>
|
Action`1<UIBuilder> | ✓ | called when the scaling menu needs generating. |
ScaleAuto:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the Scale auto button is touched. |
ScaleHumanoid:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the Scale humanoid button is touched. |
ScaleMeters:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the scale meters button is touched. |
ScaleMillimeters:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the scale millimeters button is touched. |
ScaleCentimeters:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the scale centimeters button is touched. |
ScaleInches:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the scale inches button is touched. |
OpenCustom:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the custom import settings button is touched. |
MenuCustom:Action`1<UIBuilder>
|
Action`1<UIBuilder> | ✓ | Called when the custom import settings menu needs generating. |
MulScale:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the multiply scale by 10X button is touched. |
DivScale:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the div scale by 10X button is touched. |
RunImport:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the run import button is touched. |
Import_RegularVerticalSplat:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the import regular vertical splat button is touched. |
Import_FlipVerticalSplat:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the import flipped vertical splat button is touched. |
Import_SplatLossless:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the import splat lossless button is touched. |
Import_SplatSPZ:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the import splat SPZ button is touched. |
AsRawFile:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the import as raw file button is touched. |
Return:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the return to previous button is touched. |
AlignmentAxis
| Name | Value | Description |
|---|---|---|
PosX
|
0 | Import items along the Positive X axis. |
PosY
|
1 | Import items along the Positive Y axis. |
PosZ
|
2 | Import items along the Positive Z axis. |
NegX
|
3 | Import items along the Negative X axis. |
NegY
|
4 | Import items along the Negative Y axis. |
NegZ
|
5 | Import items along the Negative Z axis. |
MaterialType
| Name | Value | Description |
|---|---|---|
PBS
|
0 | Materials should be imported as PBS metallic or specular. |
PBS_DualSided
|
1 | Materials should be imported as PBS dual sided metallic or specular. |
PBS_Triplanar
|
2 | Materials should be imported as PBS triplanar metallic or specular. |
PBS_Emissive
|
3 | Materials should be imported as PBS emissive metallic or specular. |
Unlit
|
4 | Materials should be imported as unlit. |
UnlitDualSided
|
5 | Materials should be imported as Unlit dual sided. |
UnlitBillboard
|
6 | Materials should be imported as Unlit per vertex billboard. |
XiexeToon
|
7 | Materials should be imported as Xiexe Toon. |
XiexeToonOutline
|
8 | Materials should be imported as Xiexe Toon with an outline. |
Wireframe
|
9 | Materials should be imported as wireframe. |
Called when the button is touched.
Usage
See Importing.
Examples
See Importing.
