Component image

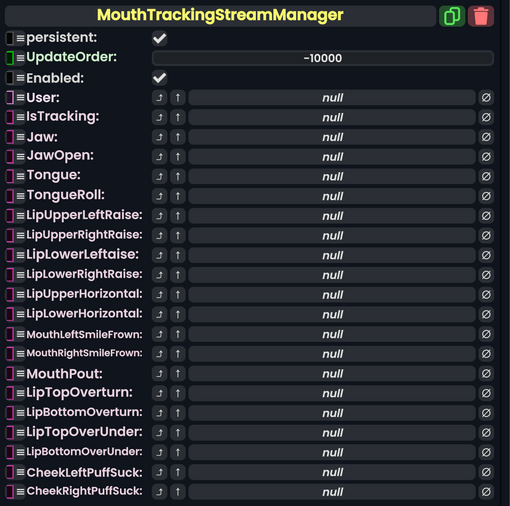

MouthTrackingStreamManager component as seen in the Scene Inspector
The MouthTrackingStreamManager component uses streaming data from the ValueStream component (seen in the user Inspector) to control the mouth on a user's avatar.
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
User
|
User | The referenced user to get the streamed data. |
IsTracking
|
ValueStream`1<Bool> | Should we track the mouth. |
Jaw
|
ValueStream`1<Float3> | The streamed data for the Jaw. |
JawOpen
|
ValueStream`1<Float> | The streamed data for the Jaw opening. |
Tongue
|
ValueStream`1<Float3> | The streamed data for the tongue. |
TongueRoll
|
ValueStream`1<Float> | The streamed data for the tongue rolling. |
LipUpperLeftRaise
|
ValueStream`1<Float> | The streamed data for the lip (upper-left raised). |
LipUpperRightRaise
|
ValueStream`1<Float> | The streamed data for the lip (upper-right raised). |
LipLowerLeftaise
|
ValueStream`1<Float> | The streamed data for the lip (lower-left raised). |
LipLowerRightRaise
|
ValueStream`1<Float> | The streamed data for the lip (lower-right raised). |
LipUpperHorizontal
|
ValueStream`1<Float> | The streamed data for the lip (upper-horizontal). |
LipLowerHorizontal
|
ValueStream`1<Float> | The streamed data for the lip (lower-horizontal). |
MouthLeftSmileFrown
|
ValueStream`1<Float> | The streamed data for the mouth (left frown). |
MouthRightSmileFrown
|
ValueStream`1<Float> | The streamed data for the mouth (right frown). |
MouthLeftDimple
|
ValueStream`1<Float> | |
MouthRightDimple
|
ValueStream`1<Float> | |
MouthPoutLeft
|
ValueStream`1<Float> | |
MouthPoutRight
|
ValueStream`1<Float> | |
LipTopLeftOverturn
|
ValueStream`1<Float> | |
LipTopRightOverturn
|
ValueStream`1<Float> | |
LipBottomLeftOverturn
|
ValueStream`1<Float> | |
LipBottomRightOverturn
|
ValueStream`1<Float> | |
LipTopLeftOverUnder
|
ValueStream`1<Float> | |
LipTopRightOverUnder
|
ValueStream`1<Float> | |
LipBottomLeftOverUnder
|
ValueStream`1<Float> | |
LipBottomRightOverUnder
|
ValueStream`1<Float> | |
LipLeftStretchTighten
|
ValueStream`1<Float> | |
LipRightStretchTighten
|
ValueStream`1<Float> | |
LipsLeftPress
|
ValueStream`1<Float> | |
LipsRightPress
|
ValueStream`1<Float> | |
CheekLeftPuffSuck
|
ValueStream`1<Float> | The streamed data for the cheek (left puff). |
CheekRightPuffSuck
|
ValueStream`1<Float> | The streamed data for the cheek (right puff). |
CheekLeftRaise
|
ValueStream`1<Float> | |
CheekRightRaise
|
ValueStream`1<Float> | |
NoseWrinkleLeft
|
ValueStream`1<Float> | |
NoseWrinkleRight
|
ValueStream`1<Float> | |
ChinRaiseBottom
|
ValueStream`1<Float> | |
ChinRaiseTop
|
ValueStream`1<Float> |
Usage
Used for Mouth Tracking.
