Component:MultiLineMesh

Component image

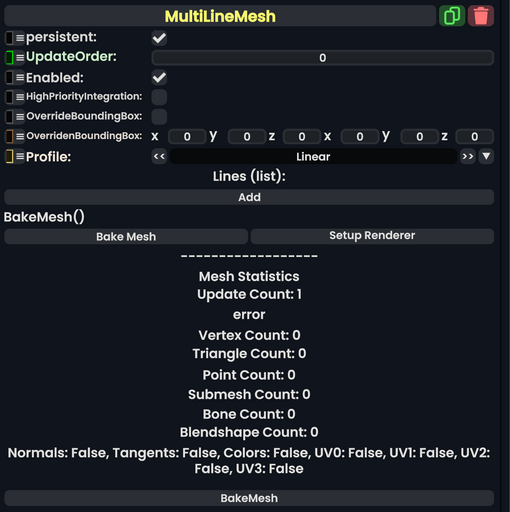

Multi Line Mesh component as seen in the Scene Inspector

The MultiLineMesh component generates geometry for use with a Component:MeshRenderer. For now, this component is unusable without Mods due to having a list type object.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
OverrideBoundingBox	Bool	Force the bounding box calculated from this component to use OverridenBoundingBox instead of calculating when requested.
OverridenBoundingBox	BoundingBox	the bounding box this component should say it has when OverrideBoundingBox is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
Profile	ColorProfile	The profile that the vertex colors for this mesh should be displayed in.
Lines	list of MultiLineMesh.Line	A set of lines that make up the source of the data for the geometry of this mesh.

Sync Delegates

Triggers

Method Name	Method type and Arguments.	Is the method hidden?	Description
BakeMesh:Action	Action	X	Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.

Line

Fields

Name	Type	Description
Scale	Float	The radius of the line. This is a multiplier.
Color	Color	The vertex color of the line
Points	Int	How many points are in this line.
Topology	Topology	the kind of Topology this line has.
Shading	Shading	How to handle the Shading of this line.
Ends	Ends	How to handle the caps at the start and end of this line
DualSided	Bool	Whether the line can be seen from the inside.
AbsolutePointOffets	Bool	Whether each position is relative or not from the last point
UVScale	Float2	the scale of the material detail on the surface of this line.
ScaleUVByCircumference	Bool	Whether to keep the material detail per square millimeter consistent regardless of the value used for Scale
PreciseUV	Bool	Whether to make a more accurate UV for the line.
Positions	array of Float3	A list of positions to use for making the line
Scales	array of Float	The scale of each line segment. Each one is multipled by Scales for the final geometry.
Orientations	array of FloatQ	The rotation of each segment of the line
Colors	array of Color	The vertex colors of each segment of the line
Profile	ColorProfile	The color profile used for the vertex colors of this line.
PointOffsets	array of Float3	The offset of each point of the line. Used in tandem with Orientations to handle line shape.

Usage

Attach to a slot and insert into a Component:MeshRenderer to view the generated geometry. Don't forget to use a Material.

Examples

This article or section is a stub. You can help the Resonite wiki by expanding it.
