Component:MultiValueTextFormatDriver

Component image

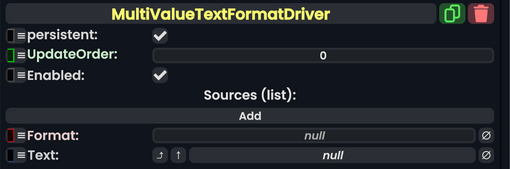

Multi Value Text Format Driver component as seen in the Scene Inspector

The MultiValueTextFormatDriver applies the values of multiple source fields to a text format string and drives the target string field. Each {N} placeholder refers to an item in Sources by index, starting at 0. Enum sources are converted to their name before formatting.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Sources	direct SyncRelayList`1<IField>	A list of source fields.
Format	[[Type:String|String]]	The format string. See: String formatting or examples bellow.
Text	field drive of String	The target field.

Usage

Attach to a slot and provide a format string and source values in order to drive a string field (such as text on a TextRenderer or UIX label) without involving ProtoFlux.

To use the component:

1. Attach a MultiValueTextFormatDriver to a slot.
2. Link Text to the String field you want to update.
3. Add source fields to Sources in order (first item = {0}, second = {1}, and so on).
4. Set Format to your format string.

The formatted result is written to Text whenever a source changes. Invalid format strings fail silently and produce no output.

For details of the Format string, see: String formatting#Composite Formatting

Examples

See: String formatting#Examples

See Also

• ValueTextFormatDriver when there is a single source.
• StringConcatenationDriver for combining text without formatting.
