Component:PBS DistanceLerpMetallic

This article or section is a stub. You can help the Resonite wiki by expanding it.

Component image

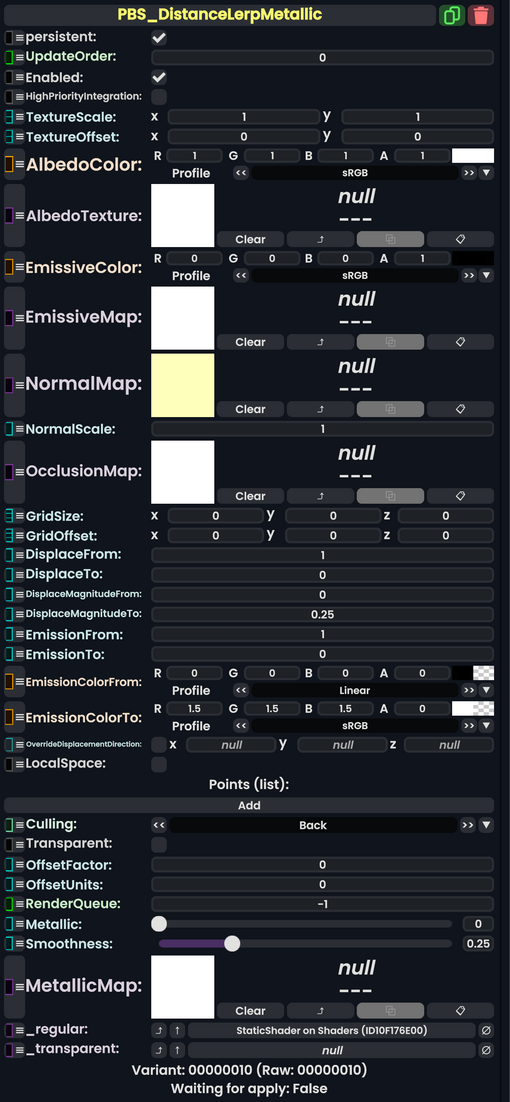

PBS Distance Lerp Metallic component as seen in the Scene Inspector

Works on meshes with dense vertices. Can apply tint based on distance to specified points, and also displaces the vertices in the mesh based on distance to specified points (possibly towards/away from the point).

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
TextureScale	Float2	How much to scale up or down the different texture maps.
TextureOffset	Float2	How much to shift around the position of the different texture maps.
AlbedoColor	ColorX	The color to multiply the texture of the albedo (base color) with. Basically a tint. Default white.
AlbedoTexture	ITexture2D	The texture to use as the color of the surface.
EmissiveColor	ColorX	The color to multiply the texture of the emission (glowly color) with. Basically a tint. Default white.
EmissiveMap	ITexture2D	The texture to use as the glowing (emission) color of the surface.
NormalMap	ITexture2D	The normal map is used as a way to change the appearance of a surface when shined on by lights, to give the illusion of a raised surface.
NormalScale	Float	How much to scale up the effect of the normal map.
OcclusionMap	ITexture2D	Used to specify surface parts in eternal shadow due to being close to other mesh parts.
GridSize	Float3	Template:Material GridSize
GridOffset	Float3	Template:Material GridOffset
DisplaceFrom	Float	Template:Material DisplaceFrom
DisplaceTo	Float	Template:Material DisplaceTo
DisplaceMagnitudeFrom	Float	Template:Material DisplaceMagnitudeFrom
DisplaceMagnitudeTo	Float	Template:Material DisplaceMagnitudeTo
EmissionFrom	Float	Template:Material EmissionFrom
EmissionTo	Float	Template:Material EmissionTo
EmissionColorFrom	ColorX	Template:Material EmissionColorFrom
EmissionColorTo	ColorX	Template:Material EmissionColorTo
OverrideDisplacementDirection	Nullable`1<Float3>	Template:Material OverrideDisplacementDirection
LocalSpace	Bool	Whether to calculate Distance and Point in local space.
Points	list of Point	A list of (global) positions and tints. The tint is applied to mesh vertices more or less depending on the mesh vertex's distance to the given point: larger distances means less tint.
Culling	Culling	Whether to show the material on the front, back, or both sides
Transparent	Bool	Whether this should render transparent
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer, based on the polygon's slope relative to the camera (i.e. polygons parallel to the camera will not be affected by this).
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (regardless of the polygon's slope relative to the camera), in units equal to the smallest possible difference for the rendering device being used.
RenderQueue	Int	changes at which point a material renders on the render stack
Metallic	Float	How much metallicness the surface should have if MetallicMap is not specified.
Smoothness	Float	How much smoothness the surface should have if MetallicMap is not specified.
MetallicMap	ITexture2D	Metallic Maps
_regular	Shader	Internal.
_transparent	Shader	Shader, Internal.

Usage

This article or section is a stub. You can help the Resonite wiki by expanding it.

Examples

This article or section is a stub. You can help the Resonite wiki by expanding it.
