Component:PBS IntersectMetallic

Component image

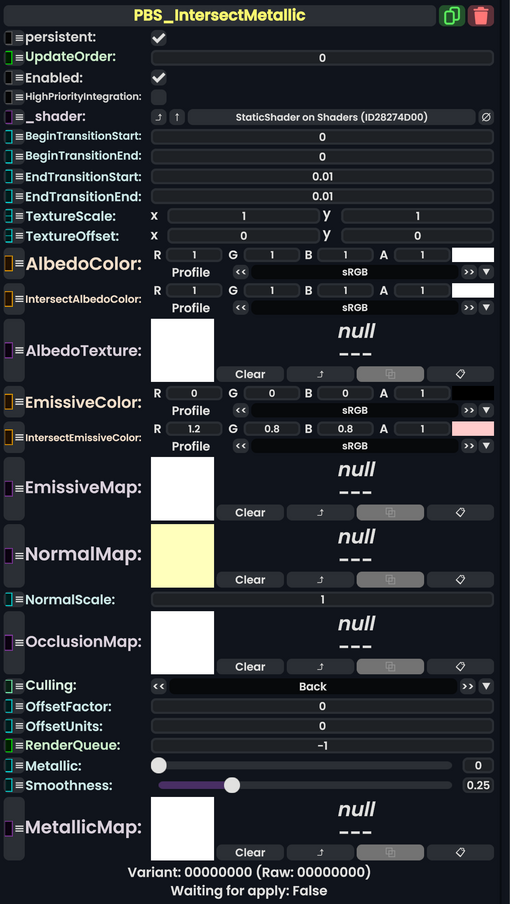

PBS Intersect Metallic component as seen in the Scene Inspector

A PBS Intersect Shader (both metallic & specular variants) renders a glow outline when intersecting with opaque materials (any that write to ZBuffer).

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
_shader	Shader	Internal.
BeginTransitionStart	Float	Where the band of color change when the material intercects with a material starts to fade to the intercect colors where the material intercects with another.
BeginTransitionEnd	Float	Where the band of color change when the material intercects with a material stops to fading to the intercect colors away from the edge where the material intercects with another and actually reaches 100% intercect.
EndTransitionStart	Float	Where the band of color change when the material intercects with a material starts to fade to original colors on the outer edge.
EndTransitionEnd	Float	Where the band of color change when the material intercects with a material stops fading and goes back to original colors at the outer edge.
TextureScale	Float2	How much to scale up or down the different texture maps.
TextureOffset	Float2	How much to shift around the position of the different texture maps.
AlbedoColor	ColorX	The color to multiply the texture of the albedo (base color) with. Basically a tint. Default white.
IntersectAlbedoColor	ColorX	The base color of the material when it is intercecting with another material.
AlbedoTexture	ITexture2D	The texture to use as the color of the surface.
EmissiveColor	ColorX	The color to multiply the texture of the emission (glowly color) with. Basically a tint. Default white.
IntersectEmissiveColor	ColorX	The emission of the material along the edge when it intercects with another material
EmissiveMap	ITexture2D	The texture to use as the glowing (emission) color of the surface.
NormalMap	ITexture2D	The normal map is used as a way to change the appearance of a surface when shined on by lights, to give the illusion of a raised surface.
NormalScale	Float	How much to scale up the effect of the normal map.
OcclusionMap	ITexture2D	Used to specify surface parts in eternal shadow due to being close to other mesh parts.
Culling	Culling	Whether to show the material on the front, back, or both sides
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), adjusted for the polygon's slope relative to the camera's near and far planes. This can be used to sort overlapping geometry that would otherwise Z-fight.
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), in units equal to the smallest possible difference for the rendering device being used.
RenderQueue	Int	changes at which point a material renders on the render stack
Metallic	Float	The metallicness of the material in the absence of the metallic+reflectiveness image map.
Smoothness	Float	The Smoothness value in the absence of the Metallic+Smoothness image map.
MetallicMap	ITexture2D	Metallic Maps
