Component:PBS RimSpecular

Component image

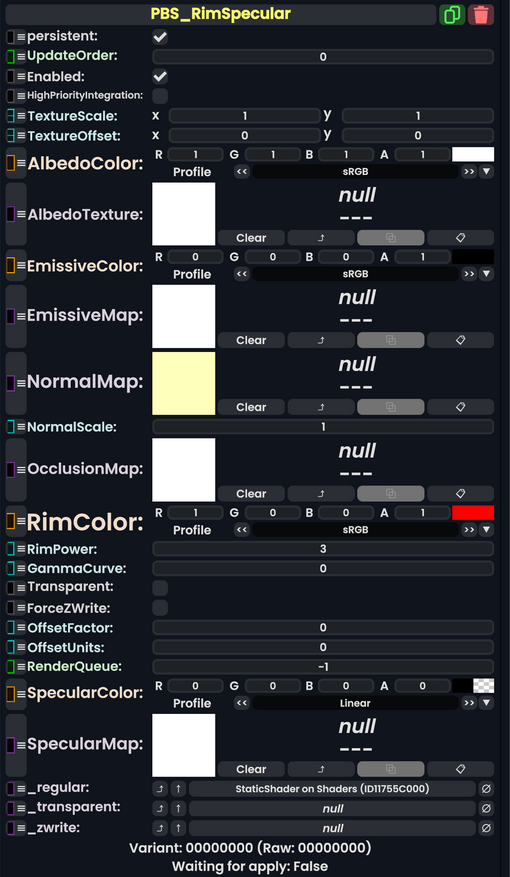

PBS Rim Specular component as seen in the Scene Inspector

The PBS_RimSpecular material is used in away materials, and can be used to make a normal PBS material with an emissive rim from camera view.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
TextureScale	Float2	How much to scale up or down the different texture maps.
TextureOffset	Float2	How much to shift around the position of the different texture maps.
AlbedoColor	ColorX	The color to multiply the texture of the albedo (base color) with. Basically a tint. Default white.
AlbedoTexture	ITexture2D	The texture to use as the color of the surface.
EmissiveColor	ColorX	The color to multiply the texture of the emission (glowly color) with. Basically a tint. Default white.
EmissiveMap	ITexture2D	The texture to use as the glowing (emission) color of the surface.
NormalMap	ITexture2D	The normal map is used as a way to change the appearance of a surface when shined on by lights, to give the illusion of a raised surface.
NormalScale	Float	How much to scale up the effect of the normal map.
OcclusionMap	ITexture2D	Used to specify surface parts in eternal shadow due to being close to other mesh parts.
RimColor	ColorX	Rim Lighting Color
RimPower	Float	Rim Lighting Power
GammaCurve	Float	The gamma curve of the material colors.
Transparent	Bool	Whether this should render transparent
ForceZWrite	Bool	Whether to enforce writing to the Z-buffer.
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer, based on the polygon's slope relative to the camera (i.e. polygons parallel to the camera will not be affected by this).
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (regardless of the polygon's slope relative to the camera), in units equal to the smallest possible difference for the rendering device being used.
RenderQueue	Int	changes at which point a material renders on the render stack
SpecularColor	ColorX	Specular Tint. Behaves like PBS Specular Tinting
SpecularMap	ITexture2D	Specular Maps
_regular	Shader	Internal.
_transparent	Shader	Shader, Internal.
_zwrite	Shader	Shader, internal.
