Component:PBS TriplanarSpecular

This article or section is a stub. You can help the Resonite wiki by expanding it.

Component image

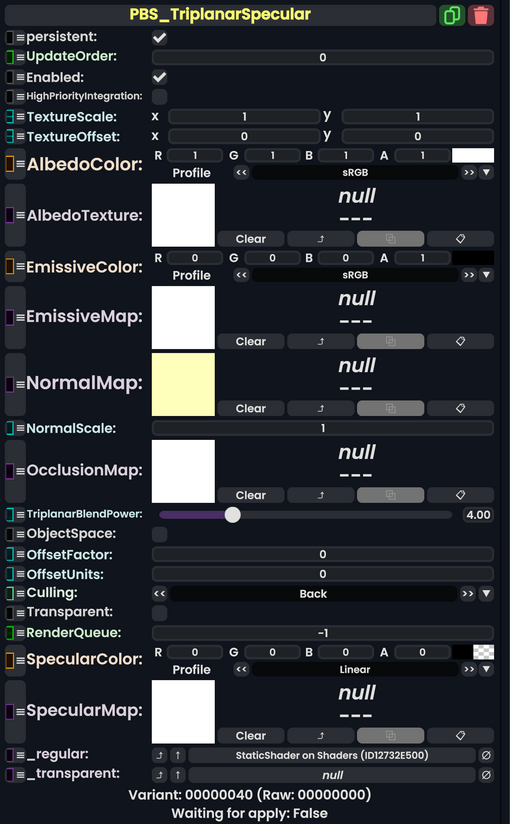

PBS Triplanar Specular component as seen in the Scene Inspector

A triplanar shader generates UVs and samples a texture by projecting in world space. The input texture is sampled 3 times, once in each of the world x, y and z axes, and the resulting information is planar projected onto the model, blended by the normal.

They are particularly useful for projecting a texture onto a cubical object without causing stretching of the texture.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
TextureScale	Float2	How much to scale up or down the different texture maps.
TextureOffset	Float2	How much to shift around the position of the different texture maps.
AlbedoColor	ColorX	The color to multiply the texture of the albedo (base color) with. Basically a tint. Default white.
AlbedoTexture	ITexture2D	The texture to use as the color of the surface.
EmissiveColor	ColorX	The color to multiply the texture of the emission (glowly color) with. Basically a tint. Default white.
EmissiveMap	ITexture2D	The texture to use as the glowing (emission) color of the surface.
NormalMap	ITexture2D	The normal map is used as a way to change the appearance of a surface when shined on by lights, to give the illusion of a raised surface.
NormalScale	Float	How much to scale up the effect of the normal map.
OcclusionMap	ITexture2D	Used to specify surface parts in eternal shadow due to being close to other mesh parts.
TriplanarBlendPower	Float	How sharp the transition is between different directions of the triplanar texture on the material.
ObjectSpace	Bool	Whether the effects of this material happen in global or local space. Object space is local space (the transform space of the mesh this is on)
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), adjusted for the polygon's slope relative to the camera's near and far planes. This can be used to sort overlapping geometry that would otherwise Z-fight.
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), in units equal to the smallest possible difference for the rendering device being used.
Culling	Culling	Whether to show the material on the front, back, or both sides
Transparent	Bool	Whether this should render transparent
RenderQueue	Int	changes at which point a material renders on the render stack
SpecularColor	ColorX	Specular Tint. Behaves like PBS Specular Tinting
SpecularMap	ITexture2D	Specular Maps
_regular	Shader	Internal.
_transparent	Shader	Shader, Internal.
