Component:ParticleStyle

Component image

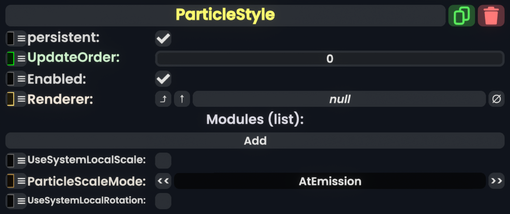

Particle Style component as seen in the Scene Inspector

This article or section is a Stub. You can help the Resonite Wiki by expanding it.

A ParticleStyle defines the visual appearance for a ParticleSystem.

Usage

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
MotionVectorMode	MotionVectorMode
MinStartLifetime	Float	The shortest amount of time a particle will potentially exist
MaxStartLifetime	Float	the longest amount of time a particle will potentially exist
MinStartSize	Float	A multiplier for the smallest size a particle can potentially be
MaxStartSize	Float	A multiplier for the largest size a particle can potentially be
MinStartSpeed	Float	The slowest a particle will potentially be emitted in meters per second
MaxStartSpeed	Float	The fastest a particle will potentially be emitted in meters per second
MinStartRotation	Float	The lowest amount of degrees around its emission axis a particle will potentially be emitted at
MaxStartRotation	Float	The highest amount of degrees around its emission axis a particle will potentially be emitted at
MinStartAngularVelocity	Float	The lowest amount of spin a particle will potentially have on emission in degrees per second
MaxStartAngularVelocity	Float	The highest amount of spin a particle will potentially have on emission in degrees per second
Use3DRotation	Bool	Whether or not the particles will be affected by the 3D rotation inputs
MinStartRotation3D	Float3	The lowest amount of degrees a particle will potentially be rotated by on emission as an Euler angle
MaxStartRotation3D	Float3	The highest amount of degrees a particle will potentially be rotated by on emission as an Euler angle
MinStartAngularVelocity3D	Float3	The lowest amount of spin a particle will potentially have on emission in degrees per second as an Euler angle
MaxStartAngularVelocity3D	Float3	The highest amount of spin a particle will potentially have on emission in degrees per second as an Euler angle
GravityStrength	Float	How strongly gravity affects the emitted particles as a multiplier (i.e. setting this to 1 applies standard Earth gravity)
MinStartColor	ColorX
MaxStartColor	ColorX
UseColorOverLifetime	Bool
AlphaOverLifetime	direct SyncLinear`1<Float>
ColorOverLifetime	direct SyncLinear`1<ColorX>
Collisions	Bool	Whether or not the emitted particles will react to colliders
Bounce	Float	A multiplier for the velocity lost when the particle collides with something (1 is a perfectly elastic bounce, 0.5 loses half speed on collision, etc)
LifetimeLoss	Float	A multiplier for how much of its remaining lifetime a particle loses on collision
Material	Material	The material that will be used by the particles
TrailMaterial	Material	The material that will be used by the trails of the particles
Mesh	Mesh	The mesh (if any) that will be used by the particles.
Alignment	ParticleAlignment	Facing: Particles always face the viewport position. Velocity: Particles face the direction they're moving. View: Particles align to the viewport plane. Local: Particles align with the space of this component. World: Particles align to the z-axis of the world.
LengthScale	Float
VelocityScale	Float
MinParticleSize	Float
MaxParticleSize	Float
ParticleTrails	ParticleTrailMode	PerParticle: Each particle gets a trail. Ribbon: One trail connects each particle in the order they were emitted.
TrailRatio	Float	A multiplier for how likely a particle is to have a trail. Only affects PerParticle trail mode
RibbonCount	Int
TrailMinimumVertexDistance	Float
TrailWorldSpace	Bool
TrailDiesWithParticle	Bool	Allows the trail to complete its full lifetime even if the particle it's attached to disappears
ParticleSizeAffectsTrailWidth	Bool	Whether or not the particle size affects the trail width
ParticleSizeAffectsTrailLifetime	Bool	Whether or not the particle size affects the trail lifetime
InheritTrailColorFromParticle	Bool	Whether or not the particle color affects the trail color
TrailTextureMode	ParticleTrailTextureMode
MinTrailLifetime	Float	The lower limit for how long the trail will last behind the particle
MaxTrailLifetime	Float	The higher limit for how long the trail will last behind the particle
MinTrailColor	ColorX
MaxTrailColor	ColorX
MinTrailWidth	Float	The lower limit for the potential trail width
MaxTrailWidth	Float	The lower limit for the potential trail width
GenerateLightingDataForTrails	Bool
Light	direct RelayRef`1<Light>
LightsRatio	Float
LightRandomDistribution	Bool
LightsUseParticleColor	Bool
SizeAffectsLightRange	Bool
AlphaAffectsLightIntensity	Bool
LightRangeMultiplier	Float
LightIntensityMultiplier	Float
MaximumLights	Int
AnimationTiles	Int2
AnimationCycles	Int
AnimationType	ParticleAnimationType
UseRowIndex	Int
UseRandomRow	Bool

Behavior

Common Transition Templates:

There are 6 quick transition templates for Fade In and Fade out. Alpha fades between 0 and 1 and Intensity fading between [0,0,0,1,sRGB] (Black) and [1,1,1,1,sRGB] (White)

Transition	Generated fade positions
Alpha Fade In & Fade Out	0% - 10%, 90% - 100%
Alpha Fade In	0% - 10%
Alpha Fade Out	90% - 100%
Intensity Fade In & Fade Out	0% - 10%, 90% - 100%
Intensity Fade In	0% - 10%
Intensity Fade Out	90% - 100%

Clear Fades will clear all transitions on both AlphaOverLifetime and ColorOverLifetime, along with setting UseColorOverLifetime to false
