Component:ProgressBar

From Resonite Wiki
This page contains changes which are not marked for translation.
Component image

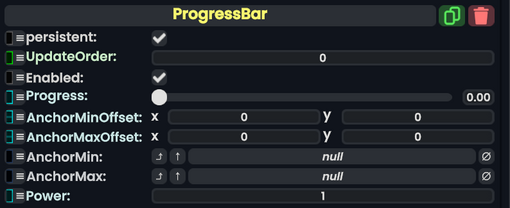

ProgressBar component as seen in the Scene Inspector


The ProgressBar component is used to show the user the normalized input of a float value on the UIX element.

Fields
Name Type Description
persistent Bool Determines whether or not this item will be saved to the server.
UpdateOrder Int Controls the order in which this component is updated.
Enabled Bool Controls whether or not this component is enabled.
Progress Float The normalized progression the of value
AnchorMinOffset Float2 UIX Anchor minimum offset
AnchorMaxOffset Float2 UIX Anchor maximum offset
AnchorMin field drive of Float2 UIX Anchor minimum offset reference input
AnchorMax field drive of Float2 UIX Anchor maximum offset reference input
Power Float Modifies the Power of the progress bar

Usage

Examples

Power

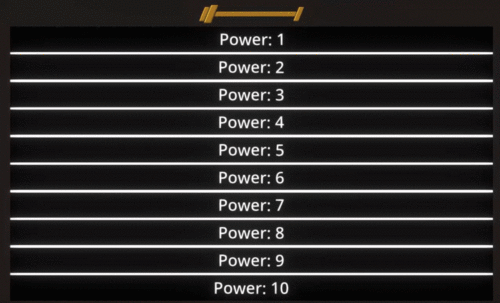

An example of how the Power field works.
An example of how the Power field works

Videos

Related Components
