Component:ReferenceSpatialVariableCollector

CollapseComponent image

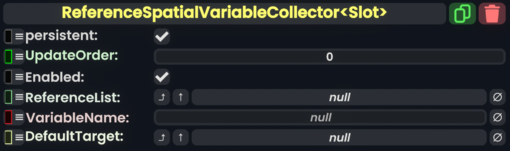

Reference Spatial Variable Collector`1 component as seen in the Scene Inspector

The Reference Spatial Variable Collector`1 component is specifically for reference types This drives a list of references, filling it with all the found spatial variables. It does this by reading all spatial variables of the reference type matching this one, and in range, and puts them into the referenced list.

Fields

Fields Collapse

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
ReferenceList	reference drive of SyncRefList`1<T>	The list to populate with the spatial variables of all spatial fields intersecting the point that is the slot this component is on.
VariableName	String	The variable to sample for.
DefaultTarget	T	The value to default to when no references can be sampled at all.

Usage

Attach to a slot which will be used as the point to sample from. give a target list to drive, and the list will populate with found values

Examples

This can be used to collect slots and put them into a list of bones on a mesh, or to apply audio effects to Component:AudioListeners.

See Also

• Component:AudioListener
