Component:RigBoneMesh

Component image

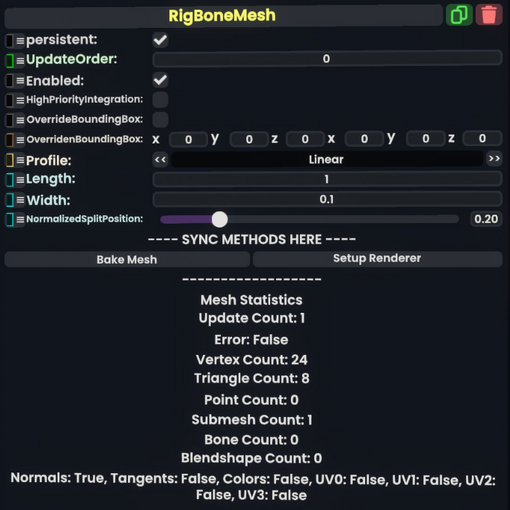

Rig Bone Mesh component as seen in the Scene Inspector

Added in Beta_2026.5.27.1300 to create the visuals for the Rig Tool, this procedural mesh generates a typical rig bone visual used in 3D software. It does not include the bone sphere at the base, for this use Component:SphereMesh.

The mesh's center is the bottom(widest default) end allowing the narrow end it to be rotated to point as required.

For other uses, changing NormalizedSplitPosition closer to 0.5 a more symmetric crystal shape can be created.

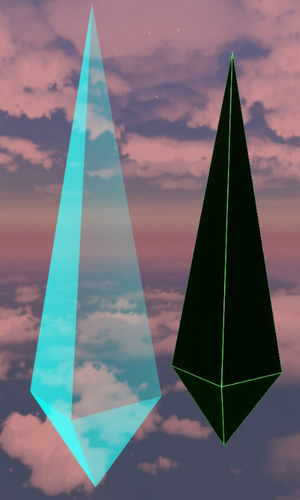

Example visuals. One with debug texture and other with wireframe texture.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
OverrideBoundingBox	Bool	Force the bounding box calculated from this component to use OverridenBoundingBox instead of calculating when requested.
OverridenBoundingBox	BoundingBox	the bounding box this component should say it has when OverrideBoundingBox is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
Profile	ColorProfile	The profile that the vertex colors for this mesh should be displayed in.
Length	Float	Determines the total length of the shape.
Width	Float	Determines the width of the widest point.
NormalizedSplitPosition	Float	How close to the 'bottom' the widest point of the shape is. 0.2 is default.
