Component:SingleShapeCharacterControllerManager
From Resonite Wiki
More actions
Component image

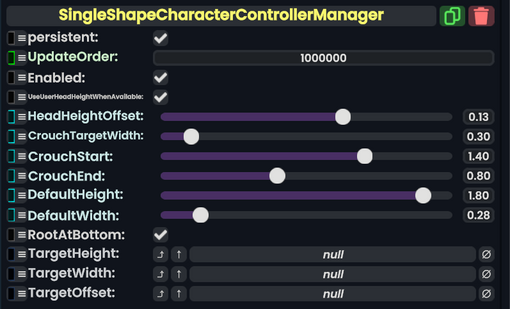

Single Shape Character Controller Manager component as seen in the Scene Inspector
The SingleShapeCharacterControllerManager component is used by locomotions to change the shape of a Capsule Collider based on a user's standing height and current height.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
UseUserHeadHeightWhenAvailable
|
Bool | Whether to use the user's head height to do calculations when possible. |
HeadHeightOffset
|
Float | How much to add/subtract from the user's head to make the top of the capsule. |
CrouchTargetWidth
|
Float | How wide the capsule should become when crouching. |
CrouchStart
|
Float | The maximum height the user's head has to be for them to be crouching. |
CrouchEnd
|
Float | The minimum height the user's head has to be for them to be crouching. |
DefaultHeight
|
Float | The user's default head height. |
DefaultWidth
|
Float | The collider's width when standing. |
RootAtBottom
|
Bool | Whether the bottom end of the capsule should be at the slot rather than the slot being at the middle. |
TargetHeight
|
field drive of Float | The slot to drive to influence the capsule collider's height. |
TargetWidth
|
field drive of Float | The slot to drive to influence the capsule collider's radius. |
TargetOffset
|
field drive of Float3 | The slot to drive to influence the capsule collider's center offset. |
Usage
This article or section is a stub. You can help the Resonite wiki by expanding it.
Examples
Used in the default locomotions and is needed for a locomotion to adjust the character collider for a user properly.
