Component:SphereConstantReferenceSpatialVariable

From Resonite Wiki
Component image

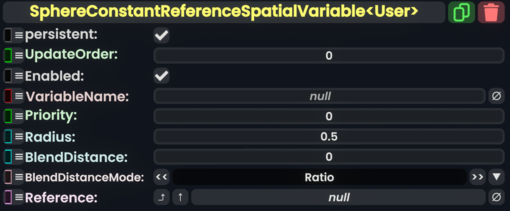

Sphere Constant Reference Spatial Variable`1 component as seen in the Scene Inspector

The SphereConstantReferenceSpatialVariable component is used to define a reference value as part of the Spatial variables system without a gradient.

Fields

Fields
Name Type Description
persistent Bool Determines whether or not this item will be saved to the server.
UpdateOrder Int Controls the order in which this component is updated.
Enabled Bool Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
VariableName String The name of the variable this has within it's field of influence for the Spatial variables system.
Priority Int The priority this spatial variable has other others overlapping in the same space for the Spatial variables system.
Radius Float How big the sphere is for the area of influence.
BlendDistance Float How the gradient for this variable within it's volume determines the sampled value for the Spatial variables system.
BlendDistanceMode SpatialVariableBlendDistanceMode The mode used for blending the value with other variables for the Spatial variables system.
Reference T The value this spatial variable gives when sampled at 100%.
