Component:Texture3DAssetMetadata

Component image

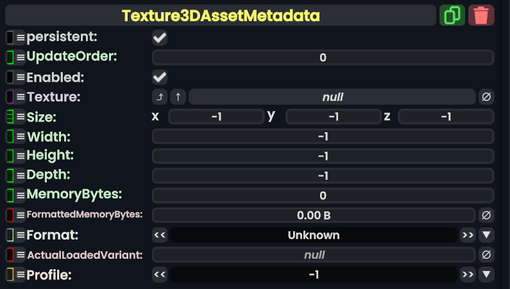

Texture 3D Asset Metadata component as seen in the Scene Inspector

The Texture3DAssetMetadata component is able to retrieve the 3D texture data like size, memory, and format usually seen at the bottom of an inspector on a particular component as usable values.

Usage

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Texture	Texture3D	The texture to get Asset Metadata for.
Size	raw output of Int3	The size of Texture in pixels.
Width	raw output of Int	The width of Texture in pixels.
Height	raw output of Int	The height of Texture in pixels.
Depth	raw output of Int	The depth or Z of Texture in pixels.
MemoryBytes	raw output of Long	How many bytes of memory Texture takes up.
FormattedMemoryBytes	raw output of String	The bytes that Texture uses in easy to read human format.
Format	raw output of TextureFormat	The format that Texture is kept in.
ActualLoadedVariant	raw output of String	The variant of Texture that has been loaded, which can be different on a client due to graphics settings or variants are being calculated on the cloud.
Profile	raw output of ColorProfile	The color space Texture is rendered in.

Usage

Attach to a slot and provide a texture to Texture and the component will change it's Outputs to the data in that provided texture.

Examples

This article or section is a stub. You can help the Resonite wiki by expanding it.

See Also

• Component:Texture2DAssetMetadata
