Component:TubeWireMesh

From Resonite Wiki
Component image

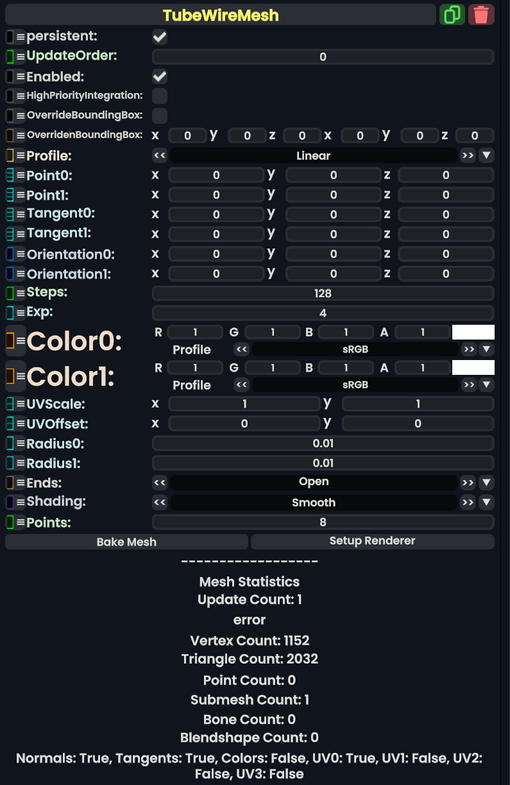

Tube Wire Mesh component as seen in the Scene Inspector

The TubeWireMesh component acts as a source of procedural Mesh data. This creates a mesh like the Component:StripeWireMesh but is a tube instead.

Fields

Fields
Name Type Description
persistent Bool Determines whether or not this item will be saved to the server.
UpdateOrder Int Controls the order in which this component is updated.
Enabled Bool Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration Bool If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
OverrideBoundingBox Bool Force the bounding box calculated from this component to use OverridenBoundingBox instead of calculating when requested.
OverridenBoundingBox BoundingBox the bounding box this component should say it has when OverrideBoundingBox is enabled. Useful for bounding box calculations with Flux, or changing the selection box for this component when rendered.
Profile ColorProfile The profile that the vertex colors for this mesh should be displayed in.
Point0 Float3 The starting point for the tube mesh.
Point1 Float3 The ending point for the tube mesh.
Tangent0 Float3 The bend towards point at the beginning.
Tangent1 Float3 The bend towards point at the end.
Orientation0 FloatQ The rotation of the end cap at the beginning of the tube.
Orientation1 FloatQ The rotation of the end cap at the end of the tube.
Steps Int How many length wise subdivisions there is.
Exp Float How much to stretch mesh geometry towards the tangent points.
Color0 ColorX The color of the vertex colors at the starting point.
Color1 ColorX The color of the vertex colors at the ending point.
UVScale Float2 The scale of the texture detail on this mesh's surface.
UVOffset Float2 The offset of the texture detail on this mesh's surface.
Radius0 Float The starting radius of the tube.
Radius1 Float The ending radius of the tube.
Ends Ends How to seal the ends of the mesh, if at all.
Shading Shading How to shade the tube.
Points Int How many subdivisions circumference wise the tube has.

Sync Delegates

Triggers
Method Name Method type and Arguments. Description
BakeMesh() Action Bake meshes is a sync method that creates a static mesh component with this component, replaces all references to this component with the static mesh component, then deletes this component.

Usage

Attach to a slot, then insert into a Component:MeshRenderer with a material to view what this mesh looks like.

Examples

This article or section is a Stub. You can help the Resonite Wiki by expanding it.
