Component:VideoImportDialog
The VideoImportDialog component is better explained in the Importing page.
More actions
Component image

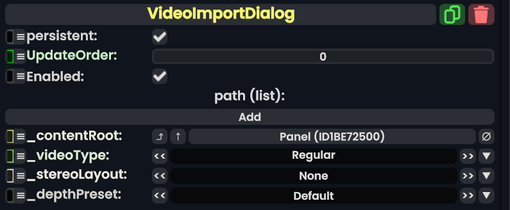

Video Import Dialog component as seen in the Scene Inspector
The VideoImportDialog component is better explained in the Importing page.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
path
|
list of Action`1<UIBuilder> | A list of sync delegates used to generate the UI when at particular paths in the importer. |
_contentRoot
|
Slot | The slot to put ui elements for import options in. |
_videoType
|
VideoImportDialog.VideoType | The type of video being imported. |
_stereoLayout
|
StereoLayout | The kind of video stereo layout the video being imported has. |
_depthPreset
|
VideoImportDialog.DepthPreset | The kind of depth the video being imported has. |
Sync Delegates
| Method Name | Method type and Arguments. | Is the method hidden? | Description |
|---|---|---|---|
OpenRoot:Action`1<UIBuilder>
|
Action`1<UIBuilder> | ✓ | Handles when the dialog is opened to the root menu. |
Preset_Video:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports default video. |
Preset_360:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports as a 360 video. |
Preset_StereoVideo:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports as a default stereo video. |
Preset_Stereo360:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports as a stereo 360 video. |
Preset_Depth:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports as a depth video. |
Preset_180:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports as a 180 video. |
Preset_Stereo180:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports as a stereo 180 video. |
MenuStereoLayout:Action`1<UIBuilder>
|
Action`1<UIBuilder> | ✓ | Switches the menu to show the stereo options. |
Preset_HorizontalLR:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports the video as a stereo horizontal Left Right layout. |
Preset_HorizontalRL:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports the video as a stereo horizontal Right Left layout. |
Preset_VerticalLR:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports the video as a stereo vertical Left Right layout. |
Preset_VerticalRL:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports the video as a stereo vertical Right Left layout. |
MenuDepthPreset:Action`1<UIBuilder>
|
Action`1<UIBuilder> | ✓ | Switches the menu to show the depth options. |
Preset_DepthDefault:ButtonEventHandler
|
ButtonEventHandler | ✓ | Uses the default depth option. |
Preset_DepthPFCapture:ButtonEventHandler
|
ButtonEventHandler | ✓ | Uses the PF capture vertical depth option. |
Preset_DepthPFCaptureHorizontal:ButtonEventHandler
|
ButtonEventHandler | ✓ | Uses the PF capture horizontal depth option. |
Preset_DepthHolofix:ButtonEventHandler
|
ButtonEventHandler | ✓ | Uses the holofix depth option. |
AsRawFile:ButtonEventHandler
|
ButtonEventHandler | ✓ | Imports the video as a raw file. |
Return:ButtonEventHandler
|
ButtonEventHandler | ✓ | Navigates the menu to the previous menu. |
VideoType
| Name | Value | Description |
|---|---|---|
Regular
|
0 | Normal video |
Sphere360
|
1 | Video is recorded in a 360 equilateral rectangle. |
Sphere180
|
2 | Video is recorded in a 180 equilateral rectangle. |
Depth
|
3 | The video is recorded with depth data. |
DepthPreset
| Name | Value | Description |
|---|---|---|
Default
|
0 | Uses no depth data. |
PFCaptureVertical
|
1 | Says depth is captured vertically where the depth data is below the color data. |
PFCaptureHorizontal
|
2 | Says depth is captured horizontally where the depth data is to the left of the color data. |
Holofix
|
3 | Depth is Holofixed. |
Usage
See Importing.
Examples
See Importing.
