Component:WireframeMaterial

Component image

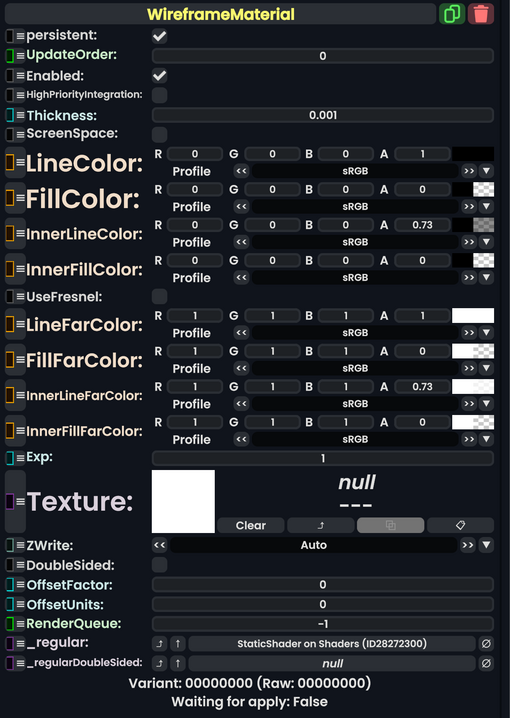

Wireframe Material component as seen in the Scene Inspector

Wireframe material is a material that can be used to see the edges of the polygons in a mesh. This does not show the polygons of a text renderer.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
Thickness	Float	the thickness of the lines in the polygons
ScreenSpace	Bool	whether the thickness should stay constant in width on the screen regardless of distance
LineColor	ColorX	the color of this material's lines
FillColor	ColorX	the color that should fill the center of each polygon.
InnerLineColor	ColorX	The color of the lines on the inner frensel.
InnerFillColor	ColorX	The color of the fill in the inner frensel.
UseFresnel	Bool	Whether to use the frensel effect with the normal and inner line and fill colors.
LineFarColor	ColorX	what the color of the lines should be when this material is rendered further away zbuffer wise.
FillFarColor	ColorX	what the color of the fill should be when this material is rendered further away zbuffer wise.
InnerLineFarColor	ColorX	what the color of the lines on the inner frensel should be when this material is rendered further away zbuffer wise.
InnerFillFarColor	ColorX	what the color of the fill on the inner frensel should be when this material is rendered further away zbuffer wise.
Exp	Float	What exponent to raise colors to.
Texture	ITexture2D	The texture to debug data for.
ZWrite	ZWrite	whether this material should respect the distance it is from the camera.
DoubleSided	Bool	Whether to render this material on both sides.
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), adjusted for the polygon's slope relative to the camera's near and far planes. This can be used to sort overlapping geometry that would otherwise Z-fight.
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), in units equal to the smallest possible difference for the rendering device being used.
RenderQueue	Int	changes at which point a material renders on the render stack
_regular	Shader	Internal.
_regularDoubleSided	Shader	Template:Material regularDoubleSided

Usage

This is useful for debugging or making retro scenes. Simply apply this material to any skinned or mesh renderer's material slot to see that material assignment render this material style.
