ProtoFlux:AND

AND

A

*

B

Boolean

The AND node takes in two value inputs (either a bool or a number value), and functions as both a logical AND or bitwise AND depending on the type used.

If both inputs are true, then the result will be true.

This node's inputs default to true.

Compared to its Multi counterpart, the normal AND is slightly faster at the cost of not performing short-circuit evaluation: it always evaluates both inputs.

Inputs

A (Pseudo-generic)

The first input value.

B (Pseudo-generic)

The second input value.

Outputs

* (Pseudo-generic)

Returns the result of a logical AND of A and B if the node is a bool type, bitwise AND otherwise.

Examples

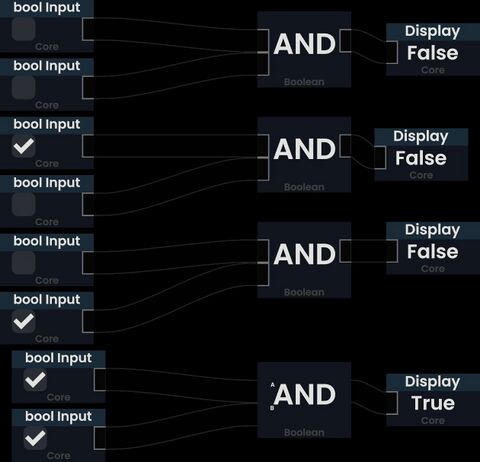

Example outputs of an AND node.
