Component:AssetMultiplexer

Component image

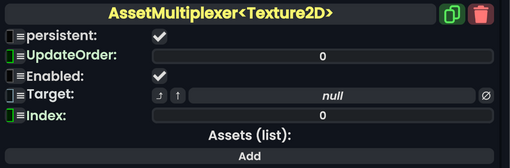

Asset Multiplexer`1 component as seen in the Scene Inspector

The AssetMultiplexer component is used to drive an asset field from a list of assets and an index within the list.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Target	reference drive of AssetRef`1<A>	The field to drive.
Index	Int	Which element in Assets to drive to Target
Assets	list of A	The list of assets to multiplex between.

Usage

Add the list of assets you want to use through the SyncAssetList<IAsset`1> area, then add in your assets into the items. Then you can specify the field through the Target you wanna switch between different assets for. Changing the Index will change which asset the Target has in it.

Ensure you can set the Target field on this component before making any other components reference the Index field on this component if you don't wanna waste your time.

This component directly drives a value, not a reference. Therefore, trying to combine it with other components using an IAssetProvider<T> type, such as a ReferenceMultiDriver, will not work. To drive by reference and thus interop this component, use a ReferenceMultiDriver<IAssetProvider<T>>

Examples

Using an asset multiplexer to allow your avatar to switch shirts via changing the texture, a pattern changer for a music visualizer.

To do texture swapping, use AssetMultiplexer<Type:ITexture2D>, not to be confused with AssetMultiplexer<Type:Texture2D>
