Component:BlurMaterial

Component image

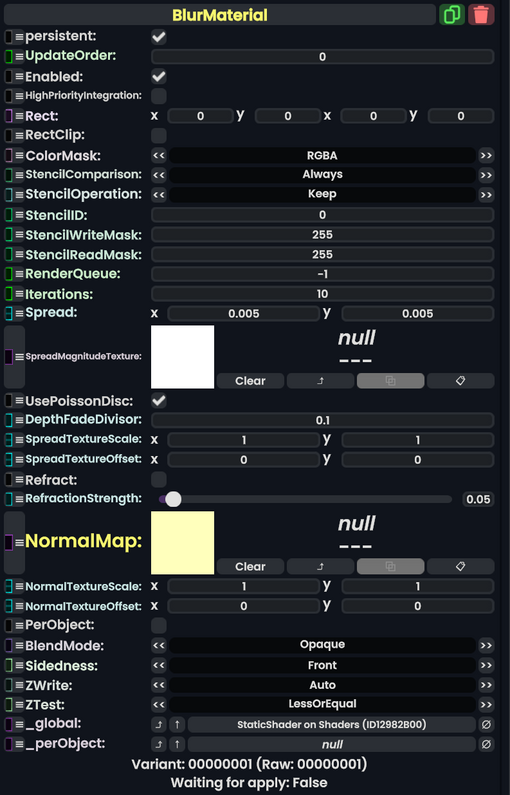

Blur Material component as seen in the Scene Inspector

The BlurMaterial Component is used to blur objects rendered behind it, by first rendering everything behind it using z-test and then grabbing the pixels, then creating spread transparent ghost images of the original pixels to give the illusion of blur.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
Rect	Rect	See RectClip on Materials.
RectClip	Bool	Toggles if the material should use Rect
ColorMask	ColorMask	What colors behind the material should make it through the filter.
StencilComparison	StencilComparison	See Type:StencilComparison for an in depth explanation on what this does.
StencilOperation	StencilOperation	See Type:StencilOperation for an in depth explanation on what this does.
StencilID	Byte	The Stencil ID of this material. This is sometimes written to the frame buffer's Stencil mask, or used to determine whether this material should render for a particular pixel.
StencilWriteMask	Byte	does a Bitwise AND with this number for every pixel in the frame buffer this is rendering on top of when this object is drawn, after reading from the buffer.
StencilReadMask	Byte	is bitwise ANDed with the Stencil in the frame buffer before the test compares them.
RenderQueue	Int	changes at which point a material renders on the render stack
Iterations	Int	How many ghost images to make in order to incur the blurring effect
Spread	Float2	How much the ghost images spread from the center real image to incur the blurring effect
SpreadMagnitudeTexture	ITexture2D	A texture to use that affects the strength of the blur effect.
UsePoissonDisc	Bool	Use the poisson disk blur algorithm
DepthFadeDivisor	Float	This setting uses the depth of the scene as a scaling factor for how blurry the filter is based on this depth, so further out objects get more blurry.
SpreadTextureScale	Float2	The uv scale of the SpreadMagnitudeTexture
SpreadTextureOffset	Float2	The uv offset of the SpreadMagnitudeTexture
Refract	Bool	Whether this material should also do refraction effects.
RefractionStrength	Float	the strength of the refactions
NormalMap	ITexture2D	The normal map is used as a way to change the appearance of a surface when shined on by lights, to give the illusion of a raised surface.
NormalTextureScale	Float2	The scale of the NormalMap texture.
NormalTextureOffset	Float2	The offset of the NormalMap texture.
PerObject	Bool	Whether to do the effect per object rather than to the entire image grab pass done by the shader by default.
BlendMode	BlendMode	How to blend this material's colors vs what it rendered on top of.
Sidedness	Sidedness	Render on both sides of the mesh, front, or back.
ZWrite	ZWrite	whether this material should respect the distance it is from the camera.
ZTest	ZTest	Determines whether this object should render when it is in front of or behind other objects that respect depth from the camera
_global	Shader	Template:Material global
_perObject	Shader	Template:Material perObject

Usage

Used to make drunk effects, privacy glass, or magic effects.

Examples

This article or section is a stub. You can help the Resonite wiki by expanding it.
