The BooleanUserOverrideGather Component allows storing Boolean "override" values for each user listed under _overrides
and driving the Target
field. The behavior is similar to ValueUserOverride<Bool>, except this component also reports aggregate information about the overrides.

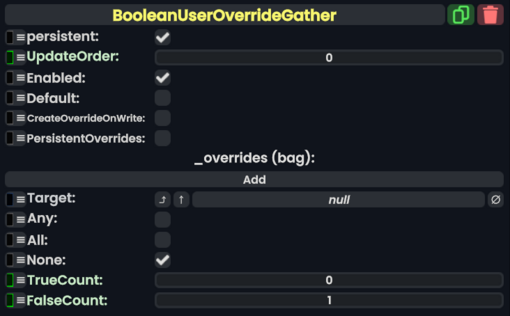

![](/images/thumb/a/aa/BooleanUserOverrideGatherComponent.png/510px-BooleanUserOverrideGatherComponent.png)
Usage
Name | Type | Description |
---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. |
Default
|
Bool | The default value given to Target if no suitable override exists in _overrides .
|
CreateOverrideOnWrite
|
Bool | Whether an entry in _overrides should be created when Target is written back.
|
PersistentOverrides
|
Bool | Whether values in _overrides should persist when the component is saved.
|
_overrides
|
direct SyncBag`1<Override<Bool>> | A Bag of the Boolean Overrides and the corresponding UserRef they apply to. |
Target
|
field drive of Bool | Reference to the field that gets driven to the override value. |
Any
|
raw output of Bool | Reports true when any user in the session would have their override be true (either from the default value or an override).
|
All
|
raw output of Bool | Reports true when all users in the session would have their override be true (either from the default value or an override).
|
None
|
raw output of Bool | Reports true when none of the users in the session would have their override be true (either from the default value or an override).
|
TrueCount
|
raw output of Int | Reports the total count of true values for all users in the session.
|
FalseCount
|
raw output of Int | Reports the total count of false values for all users in the session.
|
Note that the reporting fields (Any, All, None, TrueCount and FalseCount) count only the values for users in the sessions (including away users and headless servers), but not all the values in the _overrides
list.
Override
Name | Type | Description |
---|---|---|
User
|
UserRef | The User that should see Value 's content inside of Target locally instead of Default 's content.
|
Value
|
Bool | The Boolean value that User should see target driven to locally.
|
Behavior
The _overrides
bag contains a list of users and their associated Boolean values - whenever the local user matches a user entry in the bag, the associated value is driven to Target
. Otherwise, Target
is driven to the value in Default
.
CreateOverrideOnWrite
allows for new users and values to be added to the bag when the driven value in Target
is directly or indirectly changed by that user. If it is not enabled, the value in Target
is not changeable unless the override is added or changed manually from the inspector panel.
Attempting to write to or otherwise cause a discrete entry to a driven field is known as Hooking it. Any Hook to the Target
value is intercepted by the BooleanUserOverrideGather Component and will change the modifying user's entry in the _overrides
bag. If there is no entry for the user and if CreateOverrideOnWrite
is enabled, it will create an entry using the set value.
