Component:BreadcrumbManager

Component image

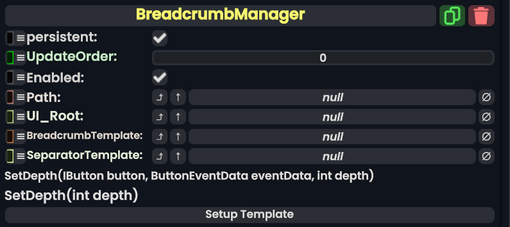

Breadcrumb Manager component as seen in the Scene Inspector

The BreadcrumbManager component is used to instantiate BreadcrumbInterfaces and remove them based on the list of path elements on a Data Feed View Type.

Usage

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Path	direct RelayRef`1<SyncFieldList`1<String>>	The path field in a Data Feed View Type component to show in the form of templates.
UI_Root	Slot	The place to put Breadcrumb path items in.
BreadcrumbTemplate	BreadcrumbInterface	The template to duplicate in order to create UI.
SeparatorTemplate	Slot	The slot to duplicate and place between elements to make them have slashes or commas between them.

Sync Delegates

Triggers

Method Name	Method type and Arguments.	Is the method hidden?	Description
SetDepth:ButtonEventHandler`1<Int>	ButtonEventHandler`1<Int>	X	Takes a number beside a button that when pressed will set the depth of the path.
SetDepth:Action`1<Int>	Action`1<Int>	X	Takes a number beside a button that when pressed will set the depth of the path.
SetupTemplate:ButtonEventHandler	ButtonEventHandler	✓	Handles setting up a template for this component for a simple settup.

Usage

Attach to a slot and provide all fields with valid values. The manager will then allow for creating path elements automatically when navigating a data feed.

Examples

Used heavily in the Settings menu to show the current path at the top.

See Also

• Data Feeds
• Component:BreadcrumbInterface
