Component:CameraPortal

Component image

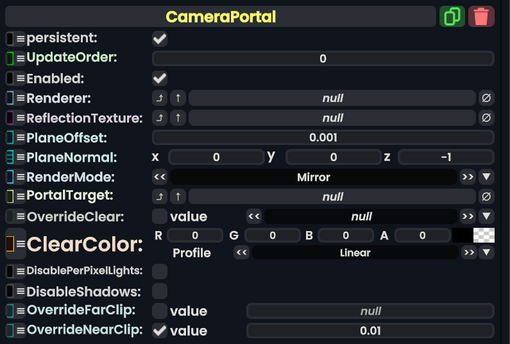

Camera Portal component as seen in the Scene Inspector

Camera Portal, Also known as: Mirror, Portal, Gateway, Non Euclidean, and Bigger on the inside thing. This component allows for making a flat surface appear to have something on the other side.

Usage

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled.
Renderer	direct RelayRef`1<MeshRenderer>	The renderer that the geometry is being used for the effect. This really only works best with flat surfaces, so use a quad in the target mesh renderer.
ReflectionTexture	RenderTexture	The render texture that this component should render what it wants to display to. This texture only works with a Reflection Material that goes on the Render's mesh.
PlaneOffset	Float	How far away from the surface the mirror or portal should render from. This doesn't need to be touched for a mirror, and causes some weird effects.
PlaneNormal	Float3	Rotates what the mirror is rendering. this can can cause some very strange effects for Mirrors and Portals, and is best understood by playing with it.
RenderMode	Mode	Whether this CameraPortal should act as a Mirror (Silver mirror) or as a Portal (Gateway, Non Euclidean, Tardis, ETC)
PortalTarget	Slot	The slot that should be used as a position to render from. When using Mirror RenderMode, keep this as the same slot as Renderer. When using Portal RenderMode, set the slot as the thing you're trying to make a gateway to visually (for a tardis, this would be the interior entrance somewhere else in the world)
OverrideClear	Nullable`1<CameraClearMode>	The type of color to clear when rendering. Functionally identical to the OverrideClear on a Camera
ClearColor	ColorX	If using "Color" for OverrideClear use this color.
DisablePerPixelLights	Bool	Disables lighting from points or spots in the projected image, which helps performance.
DisableShadows	Bool	Disable lights casting shadows in the projected image, which helps performance.
OverrideFarClip	Nullable`1<Float>	Override the default farclip from 4096 to this value when enabled.
OverrideNearClip	Nullable`1<Float>	Override the default nearclip from ~0 to this value when enabled.

Behavior

This component does not allow for recursion (So you cannot put two mirrors in front and behind and expect them to reflect each other, or portal each other).

Currently, this component does not support culling of objects via object layers, and captures everything the local user currently can render via their POV. there is no way of changing this at the current moment.

Examples

This component is used in mirrors to make what is behind you appear to be on the other side like a mirror, and it is also useful for portals or making a T.A.R.D.I.S.

See Also

Camera
