Component:ReflectionMaterial

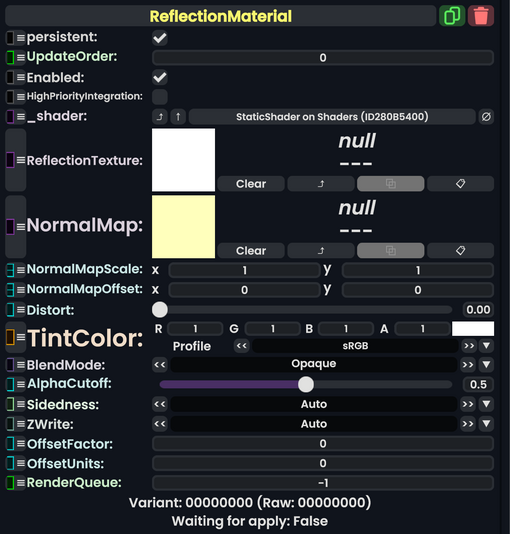

Component image

Reflection Material component as seen in the Scene Inspector

Used with Camera Portals to render what the component sees into a visual result. Like mirrors, portals, a Tardis, gateways, and Non-Euclidean tunnels.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
_shader	Shader	Internal.
ReflectionTexture	ITexture2D	A texture usually generated by a Camera Portal or previously rendered by a Camera Portal.
NormalMap	ITexture2D	The normal map is used as a way to change the appearance of a surface when shined on by lights, to give the illusion of a raised surface.
NormalMapScale	Float2	The UV scaling of the normal map texture.
NormalMapOffset	Float2	The UV offset of the normal texture.
Distort	Float	How much effect the normal map should have on the reflection.
TintColor	ColorX	What color to tint the projected image.
BlendMode	BlendMode	How to blend this material's colors vs what it rendered on top of.
AlphaCutoff	Float	If BlendMode is set to cutout, discard rendering of pixels for the surface that fall below this alpha threshold.
Sidedness	Sidedness	Render on both sides of the mesh, front, or back.
ZWrite	ZWrite	whether this material should respect the distance it is from the camera.
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), adjusted for the polygon's slope relative to the camera's near and far planes. This can be used to sort overlapping geometry that would otherwise Z-fight.
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), in units equal to the smallest possible difference for the rendering device being used.
RenderQueue	Int	changes at which point a material renders on the render stack

Usage

Attach to a slot and provide the needed render texture to view, which is usually generated by a camera portal. The material will then show either a mirror or portal like effect.

Examples

This article or section is a stub. You can help the Resonite wiki by expanding it.
