Component image

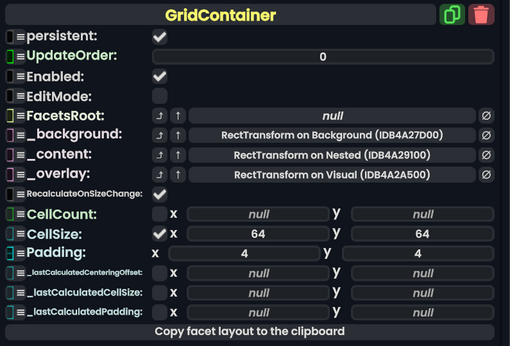

Grid Container component as seen in the Scene Inspector

The GridContainer component allows for placing facets in a grid format and storing them under a container.
Fields
Name | Type | Description |
---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
EditMode
|
Bool | Whether this grid container is currently being edited (UI edit mode) |
FacetsRoot
|
Slot | Where to put facets when they are placed on the grid. |
_background
|
RectTransform | The UIX rectangle that specifies what the background is. |
_content
|
RectTransform | The UIX rectangle for the content like facets. |
_overlay
|
RectTransform | The UIX rectangle for the grid Overlay when editing. |
RecalculateOnSizeChange
|
Bool | Whether to recalculate the facets on size change of the canvas. |
CellCount
|
Nullable`1<Int2> | The forced cell count of this grid container. |
CellSize
|
Nullable`1<Float2> | How big each cell is in pixels. |
Padding
|
Float2 | How much padding between facets there should be. |
_lastCalculatedCenteringOffset
|
Nullable`1<Float2> | The last centering offset calculated by this component, if at all. |
_lastCalculatedCellSize
|
Nullable`1<Float2> | The last cell size calculated by this component, if at all. Created when CellCount is specified.
|
_lastCalculatedPadding
|
Nullable`1<Float2> | The last calculated padding between facets if at all. |
Sync Delegates
Method Name | Method type and Arguments. | Is the method hidden? | Description |
---|---|---|---|
CopyFacetLayout:ButtonEventHandler
|
ButtonEventHandler | ✓ | Copies the facet layout to the clipboard for debugging purposes. |
FacetInsertSearchDirection
Name | Value | Description |
---|---|---|
Up
|
0 | Search for facet space in the Up direction. |
Right
|
1 | Search for facet space in the Right direction. |
Down
|
2 | Search for facet space in the Down direction. |
Left
|
3 | Search for facet space in the Left direction. |
Examples
Used in dash screens like the home tab so that facets can be placed on it during edit mode and then saved.
