Component:GripPoseReference

From Resonite Wiki
Component image

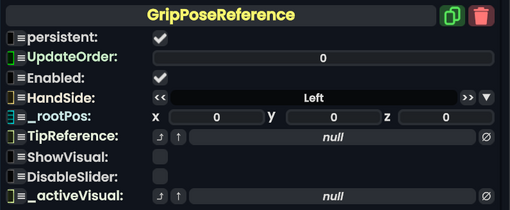

Grip Pose Reference component as seen in the Scene Inspector

The GripPoseReference component is placed under Tools to tell them how they should be positioned when equipped.

Fields

Fields
Name Type Description
persistent Bool Determines whether or not this item will be saved to the server.
UpdateOrder Int Controls the order in which this component is updated.
Enabled Bool Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HandSide Chirality The hand side this grip pose should
_rootPos Float3 The root position of the tooltip.
TipReference Slot the slot for the tool tips tip in question.
ShowVisual Bool Whether to show the adjustment visual.
DisableSlider Bool Whether to disable adjusting this grip pose.
_activeVisual direct CleanupRef`1<Slot> The current adjustment visual.

Sync Delegates

Triggers
Method Name Method type and Arguments. Is the method hidden? Description
GrabCheck:GrabCheck GrabCheck The grab check to see if the hand grabbing can grab the grabbable assigned with this.

Usage

To create a simple object using GripPoseReference, add the RawDataTool slot to the root of the object containing the mesh. This will automatically add the GripPoseReference slots. To edit the pose, enter UI Edit Mode with the Left or Right GripPoseReference slot selected in Scene Inspector then adjust the object pose in one hand's grip with your off hand.

When the TipReference field is set, equipping the tool will align your tip reference (usually at the tip of your index finger) to the provided slot and ignore the transform of the grip pose. It is recommended to use this for custom tools which are supposed to have similar positioning to most of the default tools such as the Dev Tool.
