Component:LinearMapper1D

This article or section is a stub. You can help the Resonite wiki by expanding it.

Component image

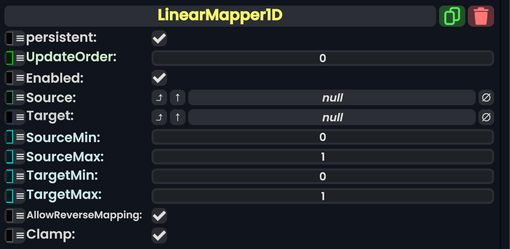

Linear Mapper 1D component as seen in the Scene Inspector

Linear Mapper 1D is a component that live maps one range to another, allowing for a reverse mapping of the target range value back to the source range when it is written to.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
Source	direct RelayRef`1<IValue`1<Float>>	The value to map from SourceMin to SourceMax using Target.
Target	field drive of Float	The value to map from TargetMin to TargetMax using Source.
SourceMin	Float	The minimum of the range of the Source value.
SourceMax	Float	The maximum of the range of the Source value.
TargetMin	Float	The minimum of the range of the Target value.
TargetMax	Float	The maximum of the range of the Target value.
AllowReverseMapping	Bool	Allow Target to map it's value to Source's ranged value when written to. See write backs.
Clamp	Bool	Whether to prevent Source and Target from going outside their defined ranges.

Usage

Can be used to keep the fullness of two different containers the same percentage wise based on purely the stored units and maximum capacity.

Examples

• LinearMapper tutorial by ProbablePrime

See Also

• LinearMapper1D
• LinearMapper2D
• LinearMapper3D
• LinearMapper4D
