Component image

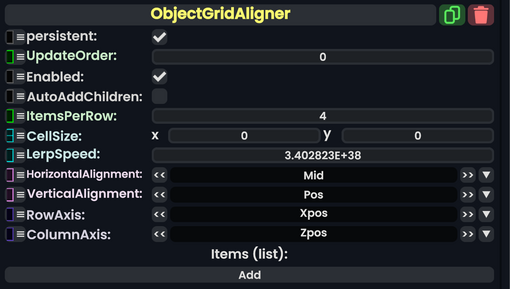

Object Grid Aligner component as seen in the Scene Inspector

The ObjectGridAligner component aligns objects into a grid of items with x number of items per row.
Fields
Name | Type | Description |
---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
AutoAddChildren
|
Bool | Controls whether slots below this component's slot in the hierarchy are automatically added to _targets .
|
ItemsPerRow
|
Int | How many items per row. |
CellSize
|
Float2 | The space between each item. |
LerpSpeed
|
Float | How fast the items should move to align themselves in the specified grid arrangement. |
HorizontalAlignment
|
Align | How to align the items horizontally. |
VerticalAlignment
|
Align | How to align the items vertically. |
RowAxis
|
AxisDir | The axis that items should be aligned on for the horizontal axis of the grid. |
ColumnAxis
|
AxisDir | The axis that items should be aligned on for the vertical axis of the grid. |
Items
|
list of Item | A list of items who's positions should be driven to place them into a grid alignment using this component's calculations. |
Align
This article or section is a Stub. You can help the Resonite Wiki by expanding it.
Controls how the items should align themselves along the axis specified by the component.
Name | Value | Description |
---|---|---|
Neg
|
0 | Aligns items so their values are always negative along the specified alignment axis (so if using x axis, x will always be negative for an item) |
Mid
|
1 | Aligns items so half are on the negative and half are on the positive along an axis, so they take up both directions equally. |
Pos
|
2 | Aligns items so their values are always positive along the specified alignment axis (so if using x axis, x will always be positive for an item) |
AxisDir
This article or section is a Stub. You can help the Resonite Wiki by expanding it.
Name | Value | Description |
---|---|---|
Xpos
|
0 | Align items along the positive x axis. |
Xneg
|
1 | Align items along the negative x axis. |
Ypos
|
2 | Align items along the positive y axis. |
Yneg
|
3 | Align items along the negative y axis. |
Zpos
|
4 | Align items along the positive z axis. |
Zneg
|
5 | Align items along the negative z axis. |
Item
Name | Type | Description |
---|---|---|
Root
|
Slot | The slot to align. |
PositionDrive
|
field drive of Float3 | The position field of Root .
|
Usage
Can be used for aligning tiles, shelves, boxes, or anything that needs consistent alignment.
