Component:PBS MultiUV Specular

Component image

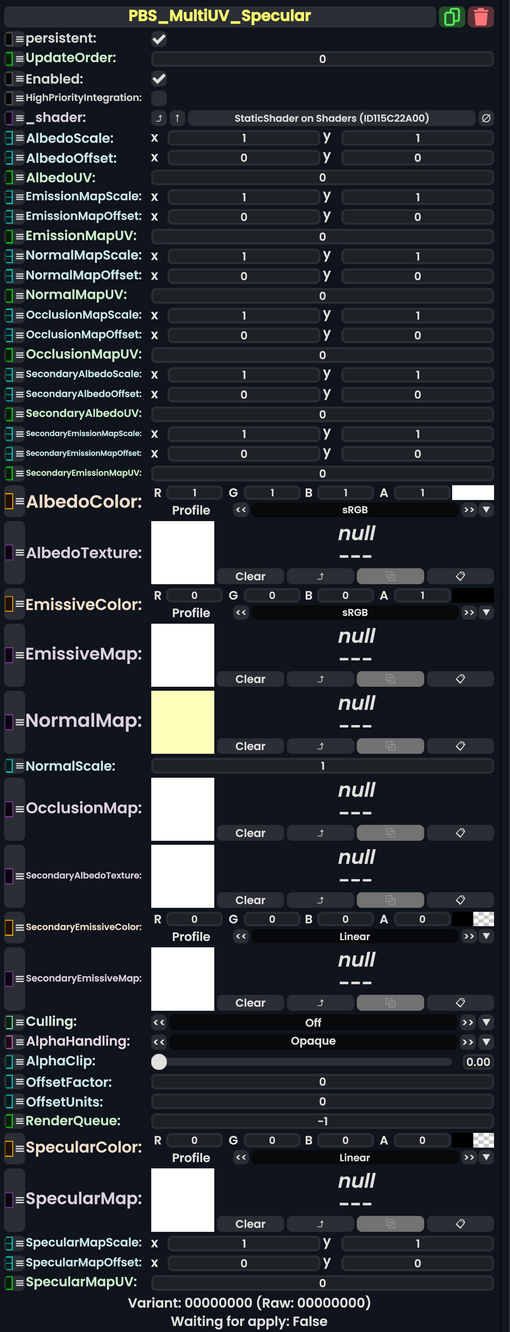

PBS Multi UV Specular component as seen in the Scene Inspector

The PBS_MultiUV_Specular component is used to create a multiple image layered effect (pairs) except for a lack of a second Specular map image.

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
_shader	Shader	Internal.
AlbedoScale	Float2	How much to scale up or down the albedo texture maps.
AlbedoOffset	Float2	How much to push around the position of the albedo texture maps.
AlbedoUV	Int	The UV map index Albedo map should use.
EmissionMapScale	Float2	The UV scaling of the emission texture.
EmissionMapOffset	Float2	The UV offset of the emission texture.
EmissionMapUV	Int	What UV map data index the emission map can use
NormalMapScale	Float2	The UV scaling of the normal map texture.
NormalMapOffset	Float2	The UV offset of the normal texture.
NormalMapUV	Int	What UV Map data index on the mesh the normal maps should use.
OcclusionMapScale	Float2	The UV scale of OcclusionMap
OcclusionMapOffset	Float2	The UV offset of OcclusionMap.
OcclusionMapUV	Int	What UV map data index in the mesh data the occlusion maps should use.
SecondaryAlbedoScale	Float2	The amount to scale up or down the UV of the secondary albedo texture map.
SecondaryAlbedoOffset	Float2	How much to push around or position the UV of the secondary albedo texture.
SecondaryAlbedoUV	Int	The UV map to use for the secondary albedo texture on this material.
SecondaryEmissionMapScale	Float2	The scaling of the UV maps on the second emissive map for this material.
SecondaryEmissionMapOffset	Float2	The offset or positioning of the UVs for the secondary emission map of this material.
SecondaryEmissionMapUV	Int	The UV map index to use for mesh UV data for this material's secondary emission map.
AlbedoColor	ColorX	The color to multiply the texture of the albedo (base color) with. Basically a tint. Default white.
AlbedoTexture	ITexture2D	The texture to use as the color of the surface.
EmissiveColor	ColorX	The color to multiply the texture of the emission (glowly color) with. Basically a tint. Default white.
EmissiveMap	ITexture2D	The texture to use as the glowing (emission) color of the surface.
NormalMap	ITexture2D	The normal map is used as a way to change the appearance of a surface when shined on by lights, to give the illusion of a raised surface.
NormalScale	Float	How much to scale up the effect of the normal map.
OcclusionMap	ITexture2D	Used to specify surface parts in eternal shadow due to being close to other mesh parts.
SecondaryAlbedoTexture	ITexture2D	The texture image to use for the secondary albedo map for this material. This determines a multiplicative secondary base color texture.
SecondaryEmissiveColor	ColorX	The emissive color tint (multiplicative) for the secondary emission map for this material.
SecondaryEmissiveMap	ITexture2D	The secondary multiplicative emission map texture for this material.
Culling	Culling	Whether to show the material on the front, back, or both sides
AlphaHandling	AlphaHandling	How to handle alpha values in pixels on the AlbedoTexture.
AlphaClip	Float	Any alpha value below this amount is not rendered for any given pixel when cutout is enabled.
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer, based on the polygon's slope relative to the camera (i.e. polygons parallel to the camera will not be affected by this).
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (regardless of the polygon's slope relative to the camera), in units equal to the smallest possible difference for the rendering device being used.
RenderQueue	Int	changes at which point a material renders on the render stack
SpecularColor	ColorX	Specular Tint. Behaves like PBS Specular Tinting
SpecularMap	ITexture2D	Specular Maps
SpecularMapScale	Float2	The scaling of the UV map of the Specular map for the material.
SpecularMapOffset	Float2	The offset or positioning of the Specular map on the surface.
SpecularMapUV	Int	The Specular map image for defining smoothness/Specular on different parts of the material surface.
