Component:PBS VertexColorMetallic

This article or section is a stub. You can help the Resonite wiki by expanding it.

Component image

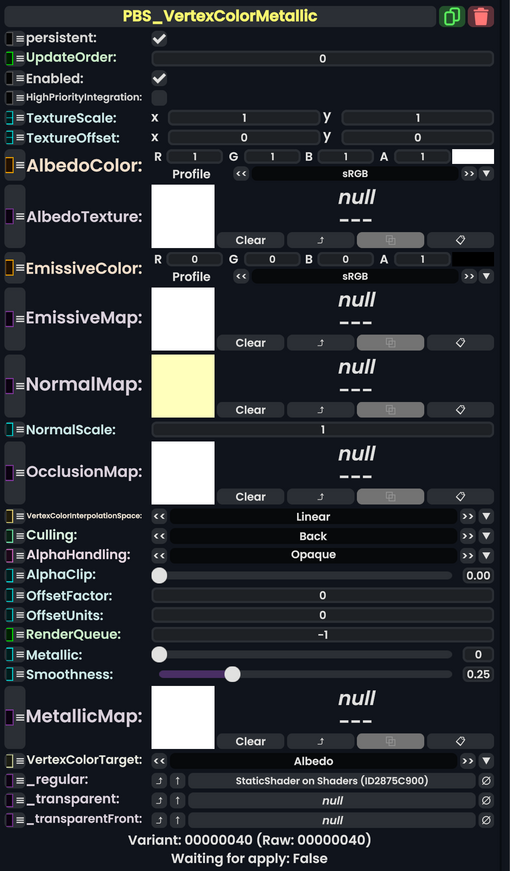

PBS Vertex Color Metallic component as seen in the Scene Inspector

The PBS_VertexColorMetallic component is a Component:PBS_Metallic component except that it allows for the use of vertex colors as a multiplier for different colors/properties of the material.

For your meshes to have vertex colors, it needs to be explicitly set to do so under the advanced settings when importing a model before clicking "run import!"

Fields

Fields

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
HighPriorityIntegration	Bool	If true, integrating this asset (e.g. processing procedural assets) gets higher priority than assets with this flag off. An example is user laser procedural meshes.
TextureScale	Float2	How much to scale up or down the different texture maps.
TextureOffset	Float2	How much to shift around the position of the different texture maps.
AlbedoColor	ColorX	The color to multiply the texture of the albedo (base color) with. Basically a tint. Default white.
AlbedoTexture	ITexture2D	The texture to use as the color of the surface.
EmissiveColor	ColorX	The color to multiply the texture of the emission (glowly color) with. Basically a tint. Default white.
EmissiveMap	ITexture2D	The texture to use as the glowing (emission) color of the surface.
NormalMap	ITexture2D	The normal map is used as a way to change the appearance of a surface when shined on by lights, to give the illusion of a raised surface.
NormalScale	Float	How much to scale up the effect of the normal map.
OcclusionMap	ITexture2D	Used to specify surface parts in eternal shadow due to being close to other mesh parts.
VertexColorInterpolationSpace	ColorProfile	How to interpolate vertex colors on the mesh.
Culling	Culling	Whether to show the material on the front, back, or both sides
AlphaHandling	AlphaHandling	How to handle alpha values in pixels on the AlbedoTexture.
AlphaClip	Float	Any alpha value below this amount is not rendered for any given pixel when cutout is enabled.
OffsetFactor	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), adjusted for the polygon's slope relative to the camera's near and far planes. This can be used to sort overlapping geometry that would otherwise Z-fight.
OffsetUnits	Float	How much this material should be pushed forwards or backwards on the depth buffer (negative is closer), in units equal to the smallest possible difference for the rendering device being used.
RenderQueue	Int	changes at which point a material renders on the render stack
Metallic	Float	The metallicness of the material in the absence of the metallic+reflectiveness image map.
Smoothness	Float	The Smoothness value in the absence of the Metallic+Smoothness image map.
MetallicMap	ITexture2D	Metallic Maps
VertexColorTarget	ColorTarget	The material map type that vertex colors should be applied to.
_regular	Shader	Internal.
_transparent	Shader	Shader, Internal.
_transparentFront	Shader	internal, shader.

ColorTarget

Values

Name	Value	Description
Albedo	0	Vertex colors should be applied as a multiplier to the material's albedo/color look.
Emissive	1	Vertex colors should be applied as a multiplier to the material's emission/glow look.
Metallic	2	Vertex colors should be applied as a multiplier to the material's metallic/smoothness look.
