Component:ProceduralSky

CollapseComponent image


Procedural Sky component as seen in the Scene Inspector

The ProceduralSky texture is used to dynamically create a skybox using a sun rotation and intensity including sun color.

Fields

Fields Collapse

Name	Type	Description
persistent	Bool	Determines whether or not this item will be saved to the server.
UpdateOrder	Int	Controls the order in which this component is updated.
Enabled	Bool	Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't.
SunQuality	ProceduralSky.SunType	The quality preset of the sun in the sky.
SunSize	Float	size of the sun in the sky
Sun	Light	The light to use for rotation, intensity, and color of the sun on this material.
AtmosphereThickness	Float	How much the atmosphere will light up the scene. If this is low, the SkyTint color coming up from the lower region of the world won't make it up to the top of the world as well, and will gradient into black. good for thin atmosphere planets, or 0 for no atmosphere.
SkyTint	ColorX	The tint of the atmosphere of the world.
GroundColor	ColorX	The tint of the sky below the horizon line.
Exposure	Float	How much to light up or darken the sky color overall.

SunType

Values

Name	Value	Description
None	0	There should be no sun texture in the sky.
Simple	1	There should be a simple disk for the sun texture in the sky.
HighQuality	2	There should be a disk with a feathered/gradient edge for the sun texture in the sky.

Examples

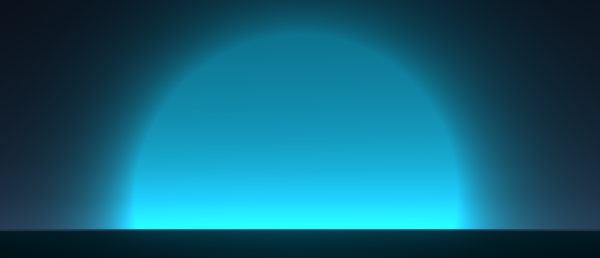

Example of a procedural sky using a sun size of 0.2, an atmospheric thickness of 0.2, a sun quality of high, and a sun color of cyan close to the horizon.
