Component image

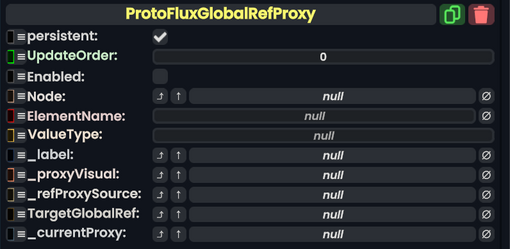

Proto Flux Global Ref Proxy component as seen in the Scene Inspector
The ProtoFluxGlobalRefProxy component allows for a piece of UI to act as a relay for interacting with global value component.
Fields
| Name | Type | Description |
|---|---|---|
persistent
|
Bool | Determines whether or not this item will be saved to the server. |
UpdateOrder
|
Int | Controls the order in which this component is updated. |
Enabled
|
Bool | Controls whether or not this component is enabled. Some components stop their functionality when this field is disabled, but some don't. |
Node
|
ProtoFluxNode | The node that this is on. |
ElementName
|
String | the name of the target component. |
ValueType
|
direct SyncType | The type of the value being held. |
_label
|
field drive of String | The field to drive with global value properties to make a name. |
_proxyVisual
|
Button | The Button used for the proxy surrounding visual. |
_refProxySource
|
direct RelayRef`1<ReferenceProxySource> | The proxy used to get the global ref. |
TargetGlobalRef
|
direct RelayRef`1<ISyncRef> | The target global reference this visual has been made for. |
_currentProxy
|
direct RelayRef`1<IGlobalValueProxy> | The current proxy this is using. |
Sync Delegates
| Method Name | Method type and Arguments. | Is the method hidden? | Description |
|---|---|---|---|
OnProxyButtonPressed:ButtonEventHandler
|
ButtonEventHandler | ✓ | Called when the proxy button is touched on the visual. |
Usage
Used in nodes like raw data tool events to show the field for the raw data tool. This is also used to interact with said visual.
